Features
>Easy installation, plug&play
>Support P2P, allowing easier home applications
>Support WPS, make easier connection
>H.264 dual-stream video compression
>HDMI/VGA simultaneous video output
>All channel 1080P recording
>Multiple network monitoring: web-browser, smart phone/tablet app
Specifications
|
Model |

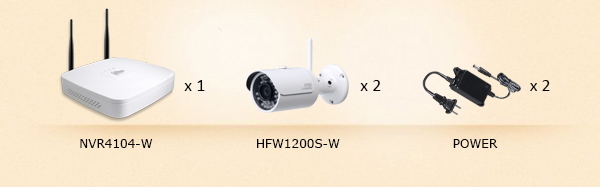

KIT/NVR4104-W/2-HFW1200S-W |
|
System |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Video & Audio |
|
IP Camera Input |
4 channel |
|
Two-way Talk |
1 channel Input,1 channel Output, RCA |
|
Display |
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1/4 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Compression |
H.264/MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) & etc. |
|
Record Rate |
80Mbps |
|
Bit Rate |
48~8192kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection |
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Playback & Backup |
|
Sync Playback |
1/4 |
|
Search Mode |
Time/Date, MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device/Network/Internal SATA burner |
|
Network |
|
Ethernet |
1RJ-45 port (10/100Mbps) |
|
Wireless Network |
Built-in Wifi module, 2 WiFi Antenna |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|
Max User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
1 SATA port, up to 4TB |
|
Auxiliary Interface |
|
USB |
2 ports (1 Rear), USB2.0 |
|
General |
|
Power Supply |
DC12V/2A |
|
Power Consumption |
NVR: 10W (without HDD) |
|
Working Environment |
-10°C~+55°C/10%~90%RH/86~106kpa |
|
Camera |
|
Image Sensor |
1/3” 3Megapixel progressive scan CMOS |
|
Effective Pixels |
2048(H)x1536(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/100000s |
|
Min. Illumination |
Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on) |
|
S/N Ratio |
More than 50dB |
|
Camera Features |
|
Max. IR LEDs Length |
30m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC /HLC /DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6/6mm lens optional |
|
Max Aperture |
F1.8 |
|
Focus Control |
Manual |
|
Angle of View |
H: 72° |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264H/H.264B/H.264/ MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) |
|
Frame Rate |
Main Stream. 1080P(1 ~ 25/30fps) |
|
Sub Stream : D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264H: 16K ~ 8Mbps |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi Range |
50m(open field) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
|
Wi-Fi |
Wi-Fi(802.11b/g) |
|
Compatibility |
ONVIF, CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
General |
|
Power Supply |
DC12V |
|
Power Consumption |
<7W |
|
Working Environment |
-30°C~+50°C, Less than 95%RH |
|
Ingress Protection |
IP66 |
|
Carton |
|
Dimension(W×D×H) |
378*216*288 mm | |
