Camera |
Image Sensor |
1/2.7" CMOS |
Max. Resolution |
2560 (H) × 1920 (V) |
ROM |
128 MB |
RAM |
256 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.02 lux@F2.0 (Color, 30 IRE) 0.0002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio |
>56 dB |
Illumination Distance |
0.5 m (1.64 ft) |
Illuminator On/Off Control |
Auto; Manual |
Illuminator Number |
1 (Warm light) |
Lens |
Lens Type |
Fixed-focal |
Lens Mount |
M8 |
Focal Length |
3.6 mm |
Max. Aperture |
F2.0 |
Field of View |
H: 79.6°; V: 63.8°; D: 93.4° |
Iris Control |
Fixed |
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|
60.0 m (196.85 ft) |
24.0 m (78.74 ft) |
12.0 m (39.37 ft) |
6.0 m
(19.96 ft) |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
Video Frame Rate |
Main stream: 2560 × 1920@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
Stream Capability |
2 streams |
Resolution |
5M (2560 × 1920); 4M (2688 × 1520);4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960 ); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32 kbps–8192 kbps H.265: 32 kbps–8192 kbps |
Day/Night |
Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
G.711a;G.711Mu; G.726; PCM |
Alarm |
Alarm Event |
SD card error; SD card full; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
Network |
Network Port |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI;Milestone |
User/Host |
20 (Total bandwidth: 80 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
Browser |
IE; Chrome; Firefox |
Management Software |
DSS; DMSS |
Mobile Client |
iOS; Android |
Cyber Security |
Configuration encryption; trusted execution; digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 2.2 W (12 VDC); 2.5 W (PoE) Max. (H.265+ warm light + WDR + motor driving+ glass heating): 5 W (12 VDC); 5.8 W (PoE) |
Environment |
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity |
≤95% |
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection |
IP67 |
Structure |
Casing Material |
Metal |

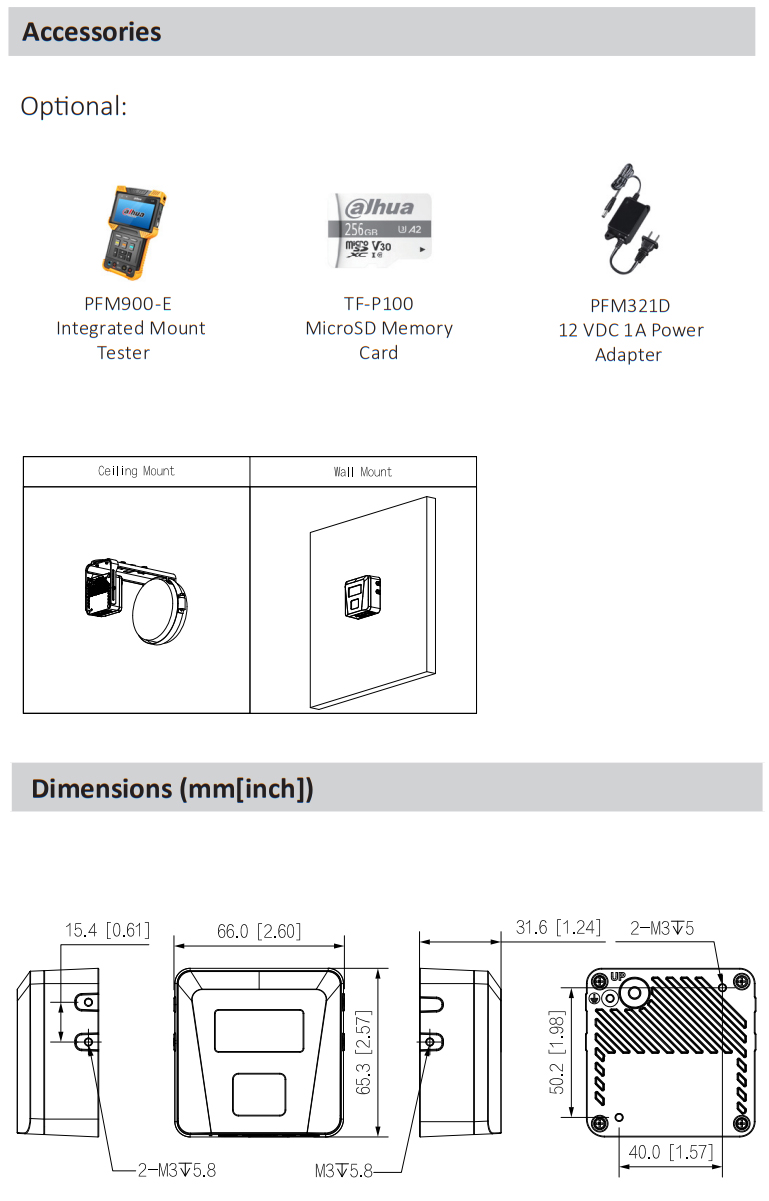

Product Dimensions |
66 mm × 65 mm × 31.6 mm (2.60" × 2.56" × 1.24") (L × W × H) |
Net Weight |
166 g (0.37 lb) |
Gross Weight |
398 g (0.88 lb) |
