Camera |
|
Image Sensor |
1/2.8" CMOS |
|
Max. Resolution |
1920 (H) × 1080 (V) |
|
ROM |
4 GB |
|
RAM |
1 GB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.0007 lux@F1.6(Color,30 IRE)
0.0004 lux@F1.6(B/W,30 IRE)
0 lux (Illuminator on) |
|
S/N Ratio |
>56 dB |
|
Illumination Distance |
Up to 80 m (262.47 ft) (IR) |
|
Illuminator On/Off Control |
Auto;Manual |
|
Illuminator Number |
4 (IR LED) |
|
Angle Adjustment |
Pan: 0°–360°
Tilt: 0°–90°
Rotation:0°–360° |
|
Lens |
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M12 |
|
Focal Length |
2.8 mm; 3.6 mm; 6 mm; 8mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
2.8 mm: H: 106°; V: 56°; D: 127°
3.6 mm: H: 88°; V: 44°; D: 105°
6 mm: H: 54°; V: 29°; D: 63°
8 mm: H: 42°; V: 23°; D: 47° |
|
Iris Control |
Fixed |
|
Close Focus Distance |
2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)
6 mm: 2.6 m (8.53 ft)
8 mm: 3.8 m (12.47 ft) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8 mm |
43.9 m (144.03 ft) |
17.5 m
(57.41 ft) |
8.8 m
(28.87 ft) |
4.4 m
(14.44 ft) |
|
|
3.6 mm |
58.9 m (193.24 ft) |
23.6 m
(77.43 ft) |
11.8 m
(38.71 ft) |
5.9 m
(19.36 ft) |
|
|
6 mm |
85.5 m (280.51 ft) |
34.2 m (112.20 ft) |
17.1 m
(56.10 ft) |
8.6 m
(28.22 ft) |
|
|
8 mm |
103.7 m (340.22 ft) |
41.5 m (136.15 ft) |
20.7 m
(67.91 ft) |
10.4 m
(34.12 ft) |
|
Intelligence |
|
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
|
Smart Object Detection |
Smart abandoned object; smart missing object |
|
SMD 3.0 |
Less false alarm, longer detection distance |
|
AI SSA |
Yes |
|
Face Detection |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
|
People Counting |
Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
|
Heat Map |
Yes |
|
Video Metadata |
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard. |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Video |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
AI Coding |
AI H.265; AI H.264 |
|
Video Frame Rate |
Main stream: 1080p@1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Stream Capability |
4 streams |
|
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 32 kbps–12032 kbps
H.265: 12 kbps–7424 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
120 dB |
|
Scene Self-adaptation (SSA) |
Yes |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Smart Illumination |
Yes |
|
Defog |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
|
Mirror |
Yes |
|
Privacy Masking |
8 areas |
|
Audio |
|
Built-in MIC |
Yes |
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
|
Alarm |
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
|
Network |
|
Network Port |
RJ-45 (10/100 Enhancement Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; |
|
User/Host |
20 (Total bandwidth: 80 M) |
|
Storage |
FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
|
Browser |
IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later |
|
Management Software |
SmartPSS Lite; DSS; DMSS |
|
Mobile Client |
iOS; Android |
|
Cyber Security |
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
|
Certification |
|
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|
Power |
|
Power Supply |
12 VDC/PoE (802.3af)/ePoE |
|
Power Consumption |
Basic: 4.1 W (12 VDC); 5.2 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 8.3 W (12 VDC); 9.8 W (PoE) |
|
Environment |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–40°C to +60°C (–40 °F to +140 °F) |
|
Storage Humidity |
10%–95% (RH), non-condensing |
|
Protection |
IP67; IK10 |
|
Structure |
|
Casing Material |
Metal |
|

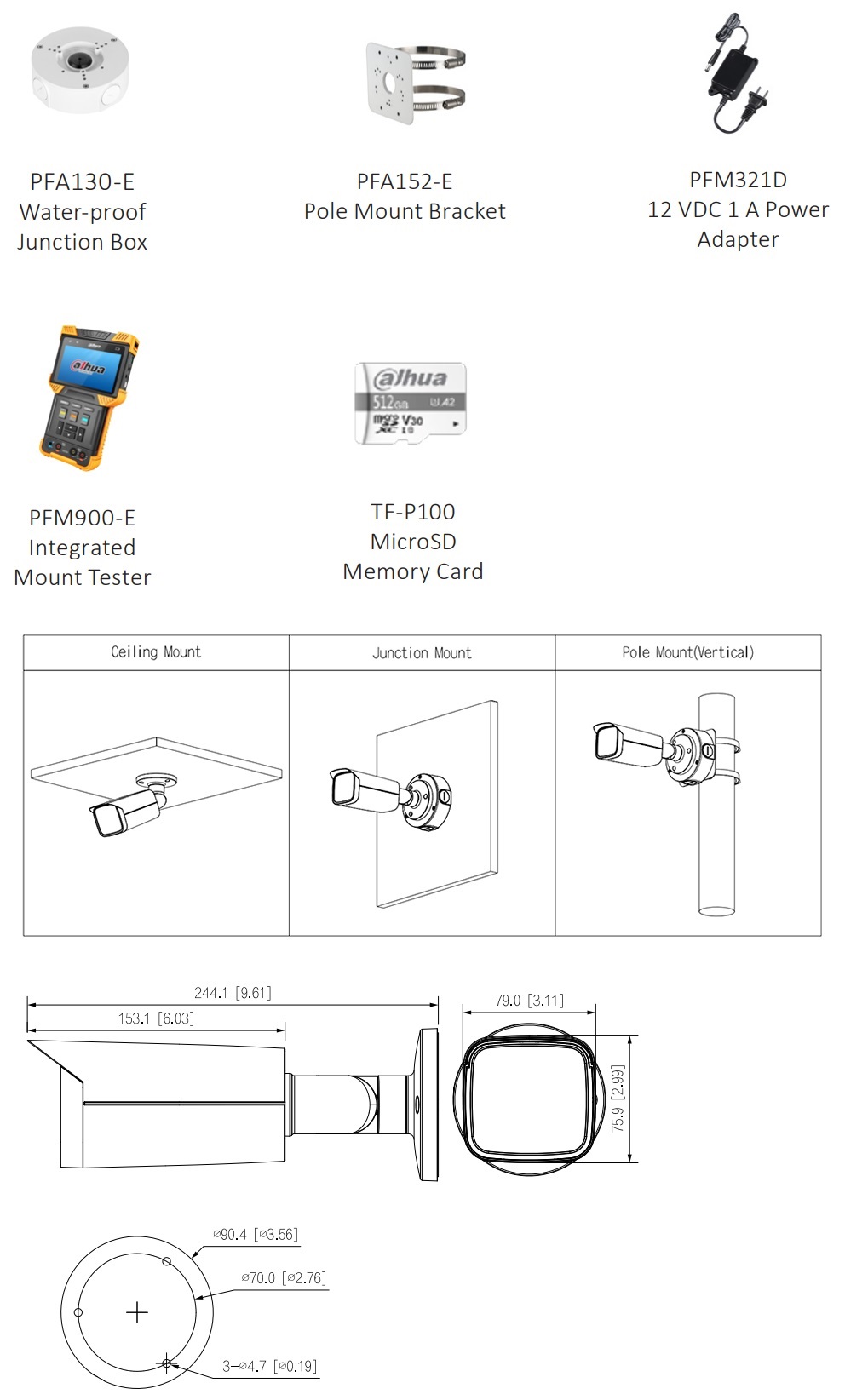

Product Dimensions |
244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") (L × W × H) |
|
Net Weight |
0.82 kg (1.81 lb) |
|
Gross Weight |
1.08 kg (2.38 lb) |
