Camera |
|
Image Sensor |
1/2.5” 8Megapixel progressive scan CMOS |
|
Effective Pixels |
3840(H)x2160(V) |
|
RAM/ROM |
512MB/32MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Minimum Illumination |
0.06Lux/F1.6( Color,1/3s,30IRE)
0.3Lux/F1.6( Color,1/30s,30IRE)
0Lux/F1.6(IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 40m (131ft) |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
2 |
|
Lens |
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Focal Length |
2.8mm (4.0mm optional) |
|
Max. Aperture |
F1.6 (F1.6) |
|
Angle of View |
H:112° (88°), V:69° (48°) |
|
Optical Zoom |
N/A |
|
Focus Control |
Fixed |
|
Close Focus Distance |
0.9m(1.7m) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8 mm |
69m(226ft) |
28m(92ft) |
14m(46ft) |
7m(23ft) |
|
|
4.0 mm |
89m(292ft) |
36m(118ft) |
18m(59ft) |
9m(30ft) |
|
Pan/Tilt/Rotation |
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
|
Intelligence |
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
|
Advanced Intelligent Functions |
Face Detection |
|
Video |
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
3 Streams |
|
Resolution |
4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/
3M(2048x1536)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream: 4K(1~15fps)/3M(1~25/30fps) |
|
|
Sub Stream: D1(1~25/30fps) |
|
|
Third Stream: 1080P(1~25/30fps) |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / WDR(120dB) |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
Support |
|
Defog |
N/A |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
N/A |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users /20 Users |
|
Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
|
Power Consumption |
<6.5W |
|
Environmental |
|
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Metal |
|

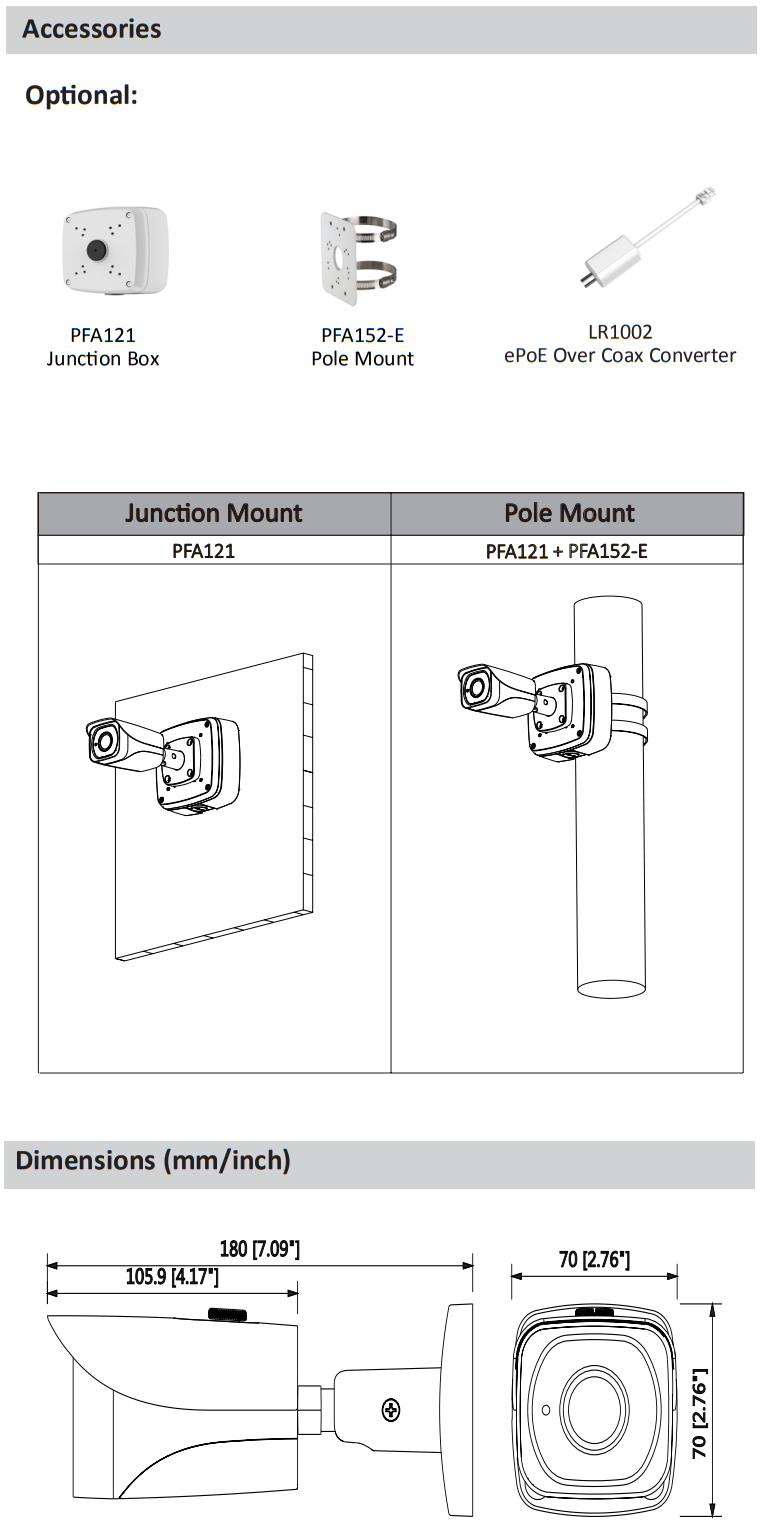

Dimensions |
180mm×70mm×70mm (7.09”×2.76”×2.76”) |
|
Net Weight |
0.41kg (0.91lb) |
|
Gross Weight |
0.53 kg (1.17lb) |
