Camera |
|
Image Sensor |
1/1.8" CMOS |
|
Max. Resolution |
11520 (H) × 2700 (V) |
|
ROM |
Panoramic network camera: 8 GB
PTZ camera: 8 GB |
|
RAM |
Panoramic network camera: 4 GB
PTZ camera: 4 GB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Panoramic network camera: Auto/Manual 1/3 s-1/100,000 s
PTZ Camera: Auto/Manual 1/1 s-1/300,000 s |
|
Min. Illumination |
Panoramic network camera:0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE)
PTZ camera:0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on) |
|
S/N Ratio |
>56 dB |
|
Illumination Distance |
Panoramic network camera: NA
PTZ camera: ≥500 m (1640.42 ft) (Laser) |
|
Illuminator On/Off Control |
Auto; Zoomprio; Manual |
|
Illuminator Number |
Panoramic network camera:NA
PTZ camera:7( LASER LED); 2(IR LED) |
|
Lens |
|
Lens Type |
Panoramic network camera: Fixed-focal
PTZ camera: Motorized vari-focal |
|
Lens Mount |
Panoramic network camera: M16
PTZ camera: Module |
|
Focal Length |
Panoramic network camera: 2.8 mm
PTZ camera: 5.5 mm–248 mm |
|
Max. Aperture |
Panoramic network camera: F1.0
PTZ camera: F1.5–F5.3 |
|
Field of View |
Panoramic network camera: H: 360°; V: 105°
PTZ camera: H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29° |
|
Iris Control |
Panoramic network camera: Fixed
PTZ camera: Auto |
|
Close Focus Distance |
Panoramic network camera:1.4 m (4.59 ft)
PTZ camera: 0.1 m–5 m (0.33 ft–16.4 ft) (T to W) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
Panoramic network camera |
57.9 m (189.96 ft) |
23.2 m
(76.11 ft) |
11.6 m
(38.06 ft) |
5.8 m
(19.03 ft) |
|
|
PTZ camera |
4420 m (14501.31 ft) |
1768 m (5800.52 ft) |
884 m (2900.26 ft) |
442 m
(1450.13 ft) |
|
Intelligence |
|
Intelligence Description |
Panoramic network camera: Perimeter protection, crowd distribution map, vehicle density.
PTZ camera: Perimeter protection, video metadata, face recognition |
|
IVS (Perimeter Protection) |
Panoramic network camera: Tripwire; intrusion; parking detection
PTZ camera: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering. |
|
Face Recognition |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures. |
|
Vehicle Density |
Vehicle density; Parking upper limit; traffic congestion alarm |
|
Crowd Distribution Map |
Crowd map, global crowd density; crowd density in area; people counting in area |
|
Video Metadata |
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, helmet.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard. |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
|
Video |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Panoramic network camera:
Main stream: 11520 × 2700@(1-25/30fps)
Sub stream: 2048 × 680@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)
PTZ camera:
Main stream: 3840 × 2160@(1-25/30fps)
Sub stream: 704 × 576@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps) |
|
Stream Capability |
3 streams |
|
Resolution |
Panoramic network camera:
Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900
Sub Stream: 2048×452
Third Stream: 3840 × 832; 2560 × 560
PTZ camera:
Main stream: 3840 × 2160; 2560 × 1440; 1960 × 1080; 1280 × 960; 1280 × 720
Sub Stream: 704 × 576; 352 × 288
Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720 |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
Panoramic network camera:
H.264: 127 kbps–20736 kbps
H.265: 50 kbps–12544 kbps
PTZ camera:
H.264: 32 kbps–27740 kbps
H.265: 12 kbps –16572 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
Panoramic network camera: DWDR
PTZ camera: 120 dB |
|
Scene Self-adaptation (SSA) |
Yes |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto; Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Panoramic network camera: Yes (4 areas)
PTZ camera: Yes (8 areas) |
|
Image Stabilization |
Panoramic network camera: NA
PTZ camera: Optical Image Stabilization |
|
Defog |
Panoramic network camera: NA
PTZ camera: Optical defog |
|
Image Rotation |
0°/180° (PTZ camera) |
|
Privacy Masking |
Panoramic network camera: 4 areas
PTZ camera: 8 areas |
|
Audio |
|
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
|
Alarm |
|
Alarm Event |
No SD card; SD card full; SD card error;
SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; security exception |
|
Network |
|
Network Port |
RJ-45(10/100/1000 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
|
Cyber Security |
Configuration encryption;trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
|
User/Host |
20 (Total bandwidth: 400 M) |
|
Storage |
FTP; SFTP; NFS; SMB; Micro SD card (support max. 512 GB) |
|
Browser |
IE: IE 9, IE 10 and IE11
Chrome: Chrome 42 and earlier
Firefox: Firefox 52 and earlier |
|
Management Software |
DSS |
|
Certification |
|
Certifications |
CE-LVD:EN62368-1;
CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|
PTZ Dome |
|
Pan/Tilt Range |
Pan: 0° to 360° endless Tilt: –12° to 90°, auto flip 180° |
|
Manual Control Speed |
Pan PTZ speed: 240°/s, Pan preset speed: 240°/s
Tilt PTZ speed: 100°/s, Tilt preset speed: 100°/s |
|
Positioning Accuracy |
Pan: 0.05° Tilt: 0.05° |
|
Remote PTZ Reset |
Yes |
|
Preset |
300 |
|
Tour |
8 (up to 32 presets per tour) |
|
Pattern |
5 |
|
Scan |
5 |
|
Power-off Memory |
Yes |
|
Idle Motion |
Preset/Pattern/Tour/Scan |
|
Time Task |
Yes |
|
Three-dimensional Positioning |
Yes |
|
PTZ Limit |
Yes |
|
Position Display |
Yes |
|
Information Display |
Yes |
|
Time Display |
Yes |
|
Port |
|
Optical Module Specification |
SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm |
|
Optical Fiber |
FC |
|
Optical Fiber Module Type |
Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm |
|
Audio Input |
2 channels (terminal) |
|
Audio Output |
2 channels (terminal) |
|
Alarm Input |
7 channels in: 5mA 3V–5V DC |
|
Alarm Output |
3 channels out: 1,000mA 30V DC/500mA 50V AC |
|
Analog Output |
1 channel (CVBS output: BNC) |
|
Power |
|
Power Supply |
36 VDC |
|
Power Consumption |
Basic: 51.48 W (36 VDC)
Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 71.9 W (36 VDC)
Heating: Panoramic network camera: 6 W (36 VDC); PTZ: 5.4 W |
|
Environment |
|
Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
|
Operating Humidity |
≤95% |
|
Storage Humidity |
–40 °C to +70 °C (–40 °F to +158 °F) |
|
Protection |
IP66; Anti-Corrosion Protection (optional) |
|
Structure |
|
Casing Material |
Metal + plastic |
|

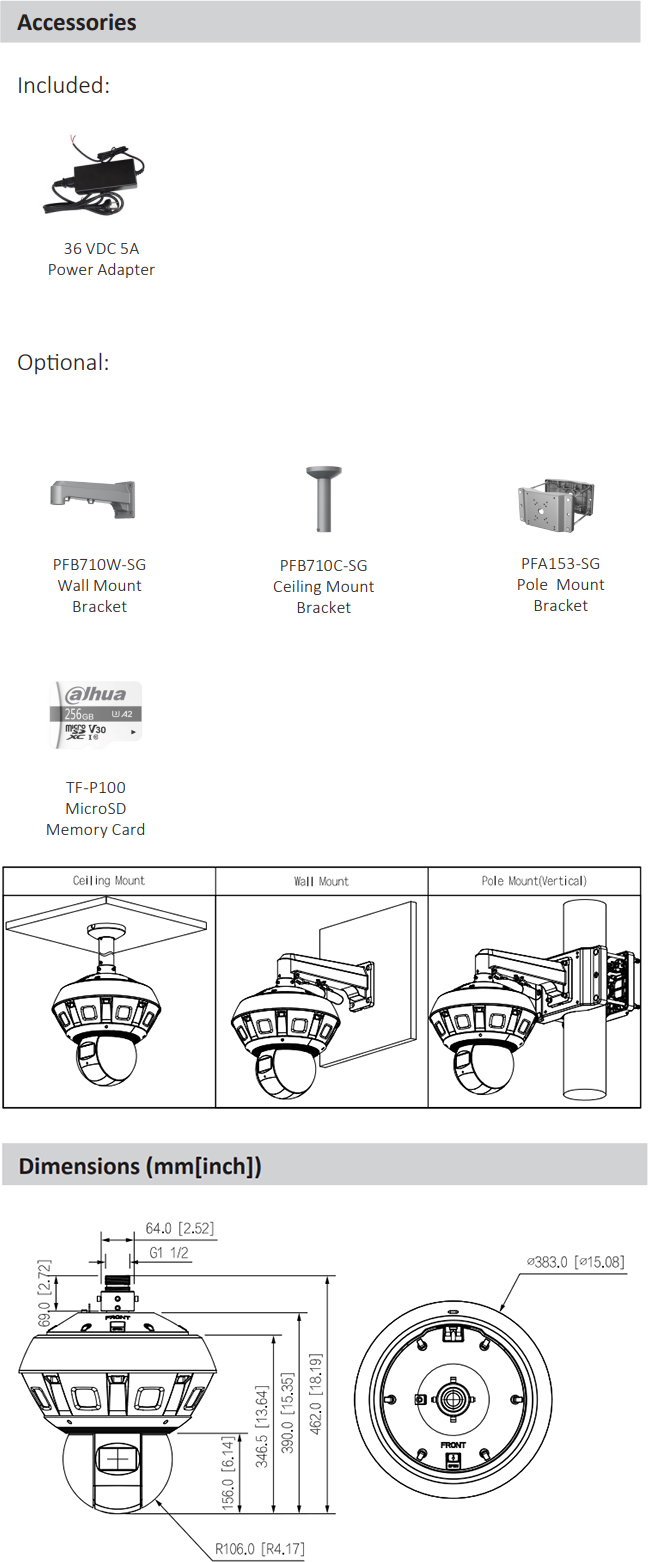

Product Dimensions |
Φ383 mm × 462 mm (15.07" × Φ18.19") |
|
Net Weight |
14.7 kg (32.41 lb) |
|
Gross Weight |
19.8 kg (43.65 lb) |
