Camera |
|
Image Sensor |
Channel 1 (Panoramic): 1/1.8" 4 Megapixel progressive CMOS
Channel 2 (PTZ): 1/1.8" 4 Megapixel progressive CMOS |
|
Pixel |
Channel 1 (Panoramic): 16 MP
Channel 2 (PTZ): 4 MP |
|
Max. Resolution |
Channel 1 (Panoramic): 5520 (H) × 2700 (V)
Channel 2 (PTZ): 2560 (H) × 1440 (V) |
|
ROM |
Channel 1 (Panoramic): 8 GB
Channel 2 (PTZ): 8 GB |
|
RAM |
Channel 1 (Panoramic): 4 GB
Channel 2 (PTZ): 2 GB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
Channel 1 (Panoramic):
0.0005 lux@F1.0 (Color,30 IRE)
0.0001 lux@F1.0 (B/W,30 IRE)
Channel 2 (PTZ):
0.001 lux@F1.4 (Color,30 IRE)
0.0005 lux @F1.4(B/W,30 IRE)
0 lux (Illuminator on) |
|
S/N Ratio |
>56 dB |
|
Illumination Distance |
Channel 1 (Panoramic): No
Channel 2 (PTZ): ≥ 400 m (1312.34 ft) |
|
Illuminator On/Off Control |
Auto; Manual; Zoomprio |
|
Illuminator Number |
Channel 1 (Panoramic): No
Channel 2 (PTZ): 7 (IR LED) |
|
Pan/Tilt/Rotation Range |
Pan: 0° to 360°
Tilt: –11° to 90° |
|
Built-in Battery |
Channel 1 (Panoramic): Horizontal welding/lithium battery/3 V
Channel 2 (PTZ): Horizontal welding/lithium battery/3 V |
|
Lens |
|
Lens Type |
Channel 1 (Panoramic): Fixed-focal
Channel 2 (PTZ): Vari-focal |
|
Lens Mount |
Channel 1 (Panoramic): M16
Channel 2 (PTZ): Module |
|
Focal Length |
Channel 1 (Panoramic): 2.8 mm
Channel 2 (PTZ): 5.5 mm–220 mm |
|
Max. Aperture |
Channel 1 (Panoramic): F1.0
Channel 2 (PTZ): F1.4 |
|
Field of View |
Channel 1 (Panoramic):
H: 180°
V: 103°
Channel 2 (PTZ):
H: 2.2°–61.8°
V: 1.3°–36.3°
D: 2.4°–69.2° |
|
Iris Control |
Channel 1 (Panoramic): No
Channel 2 (PTZ): P-iris |
|
Close Focus Distance |
Channel 1 (Panoramic): 1.4 m (4.59 ft)
Channel 2 (PTZ): 0.5 m–2 m (1.64 ft–6.56 ft) (T to W) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
Channel 1 (Panoramic) |
57.9 m (189.96 ft) |
23.2 m (76.11 ft) |
11.6 m (38.06 ft) |
5.8 m
(19.03 ft) |
|
|
Channel 2 (PTZ) |
3030 m (9940.94 ft) |
1204 m (3950.13 ft) |
606 m (1988.19 ft) |
303 m (994.10 ft) |
|
Smart Event |
|
IVS |
Channel 1 (Panoramic): Yes
Channel 2 (PTZ): Yes |
|
Intelligence |
|
Intelligence Description |
Channel 1 (Panoramic): Perimeter protection, crowd map, vehicle density.
Channel 2 (PTZ): Perimeter protection, video metadata, face recognition |
|
IVS (Perimeter Protection) |
Channel 1 (Panoramic): Tripwire; intrusion; parking detection
Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection |
|
Face Recognition |
Channel 1 (Panoramic): No
Channel 2 (PTZ):
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot)
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures. |
|
Vehicle Density |
Channel 1 (Panoramic): Vehicle density; parking upper limit; traffic congestion alarm
Channel 2 (PTZ): No |
|
Crowd Distribution Map |
Channel 1 (Panoramic): Crowd map, global crowd density; crowd density in area; people counting in area
Channel 2 (PTZ): No |
|
Video Metadata |
Channel 1 (Panoramic): No
Channel 2 (PTZ):
Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, expressions, glasses, face mask, and bread. |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
|
Video |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.264+
Smart H.265+ |
|
Video Frame Rate |
Channel 1 (Panoramic):
Main stream:5520 × 2700 @(1–25/30 fps)
sub stream:1920 × 940 @ (1–25/30 fps)
third stream:4096 × 2064 @ (1–25/30 fps)
Channel 2 (PTZ):
Main stream: 2560 × 1440@ (1–25/30 fps)
sub stream: 704 × 576@ (1–25/30 fps)
third stream:1920 × 1080@ (1–25/30 fps) |
|
Stream Capability |
3 streams |
|
Resolution |
Channel 1 (Panoramic):
Main stream: 5520 × 2700; 4600 × 2252; 3840 × 1880; 2880 × 1408
sub stream: 1920 × 940; 1280 × 620; 1024 × 496
third stream: 4096 × 2064; 2560 × 1252; 1366 × 668
Channel 2 (PTZ):
Main stream: 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720
sub stream: 704 × 576; 640 × 480; 352 × 288
third stream: 1920 × 1080; 1280 × 960; 1280 × 720 |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
Channel 1 (Panoramic):
H.264: 96 kb/s–32768 kb/s;
H.265: 38 kb/s–29588 kb/s;
Channel 2 (PTZ):
H.264: 32 kb/s–15872 kb/s
H.265: 12 kb/s–9472 kb/s |
|
Day/Night |
Channel 1 (Panoramic): No
Channel 2 (PTZ): ICR |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
Channel 1 (Panoramic): 120 dB
Channel 2 (PTZ): 120 dB |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto; Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Default Bit Rate with Default Resolution |
Channel 1 (Panoramic): 6144 kb/s (5520 × 2700)
Channel 2 (PTZ): 6144 kb/s (2560 × 1440) |
|
Region of Interest (RoI) |
Channel 1 (Panoramic): Yes (4 areas)
Channel 2 (PTZ): Yes (8 areas) |
|
Image Stabilization |
Channel 1 (Panoramic): No
Channel 2 (PTZ): No |
|
Defog |
Channel 1 (Panoramic): No
Channel 2 (PTZ): Optical defog |
|
Privacy Masking |
Channel 1 (Panoramic): 4 areas
Channel 2 (PTZ): 24 areas (8 for each preset) |
|
LDC |
Channel 1 (Panoramic): Yes
Channel 2 (PTZ): No |
|
Language |
English; Italian; Spanish; Russian; French; German; Portuguese; Polish; Korean; Czech; Dutch; Arabic; European Spanish |
|
Audio |
|
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default |
|
Audio Sampling |
8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz |
|
Alarm |
|
Alarm Event |
Channel 1 (Panoramic):
External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit
Channel 2 (PTZ):
Tripwire; intrusion; parking detection;crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection; face recognition; video metadata |
|
Network |
|
Network Port |
RJ-45 (10/100/1000 Base-T) |
|
SDK and API |
Yes |
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
|
Interoperability |
ONVIF (Profile S/Profile G/ Profile T); CGI |
|
User/Host |
20 (Total bandwidth: 400 M) |
|
Storage |
FTP; SFTP; Micro SD card (support max. 512 GB); NAS; SMB |
|
Browser |
IE: IE11
Chrome
Firefox |
|
Management Software |
SmartPSS Lite; DSS; |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° to 360° endless
Tilt: –11° to 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 240°/s
Tilt: 100°/s |
|
Telephoto Speed Limit |
Yes |
|
Positioning Accuracy |
Pan: 0.1°
Tilt: 0.1° |
|
Positioning Accuracy Automatic Calibration |
Yes |
|
Remote Lens Reset |
Yes |
|
Remote PTZ Reset |
Yes |
|
Preset |
300 |
|
Tour |
8 (up to 32 presets per tour) |
|
Pattern |
5 |
|
Scan |
5 |
|
Power-off Memory |
Yes |
|
Idle Motion |
Preset; Pattern; Tour; Scan |
|
Time Task |
Yes |
|
3D Positioning |
Yes |
|
PTZ Limit |
Yes |
|
Position Display |
Yes |
|
Information Display |
Yes |
|
Time Display |
Yes |
|
PTZ Restart |
Yes |
|
Certification |
|
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|
Port |
|
USB |
NA |
|
RS-485 |
1 (baud rate range: 1200 bps–115200 bps) |
|
Optical Module Specification |
SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm |
|
Optical Fiber |
FC |
|
Optical Fiber Module Type |
Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm |
|
HDMI |
NA |
|
Audio Input |
2 channels (terminal) |
|
Audio Output |
2 channels (terminal) |
|
Alarm Input |
7 channels in: 5mA 3V–5V DC |
|
Alarm Output |
3 channels out: 1,000mA 30V DC/500mA 50V AC |
|
Analog Output |
1 channel (CVBS output: BNC) |
|
Power |
|
Operating Voltage |
36 VDC (±50%) |
|
Power Supply |
36 VDC |
|
Power Consumption |
Basic: 59 W (36 VDC)
Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation ): 99 W (36 VDC) |
|
Environment |
|
Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–40 °C to +70 °C (–40°F to +158°F) |
|
Storage Humidity |
≤95% |
|
Protection |
IP66 |
|
Structure |
|
Casing |
Metal + plastic |
|

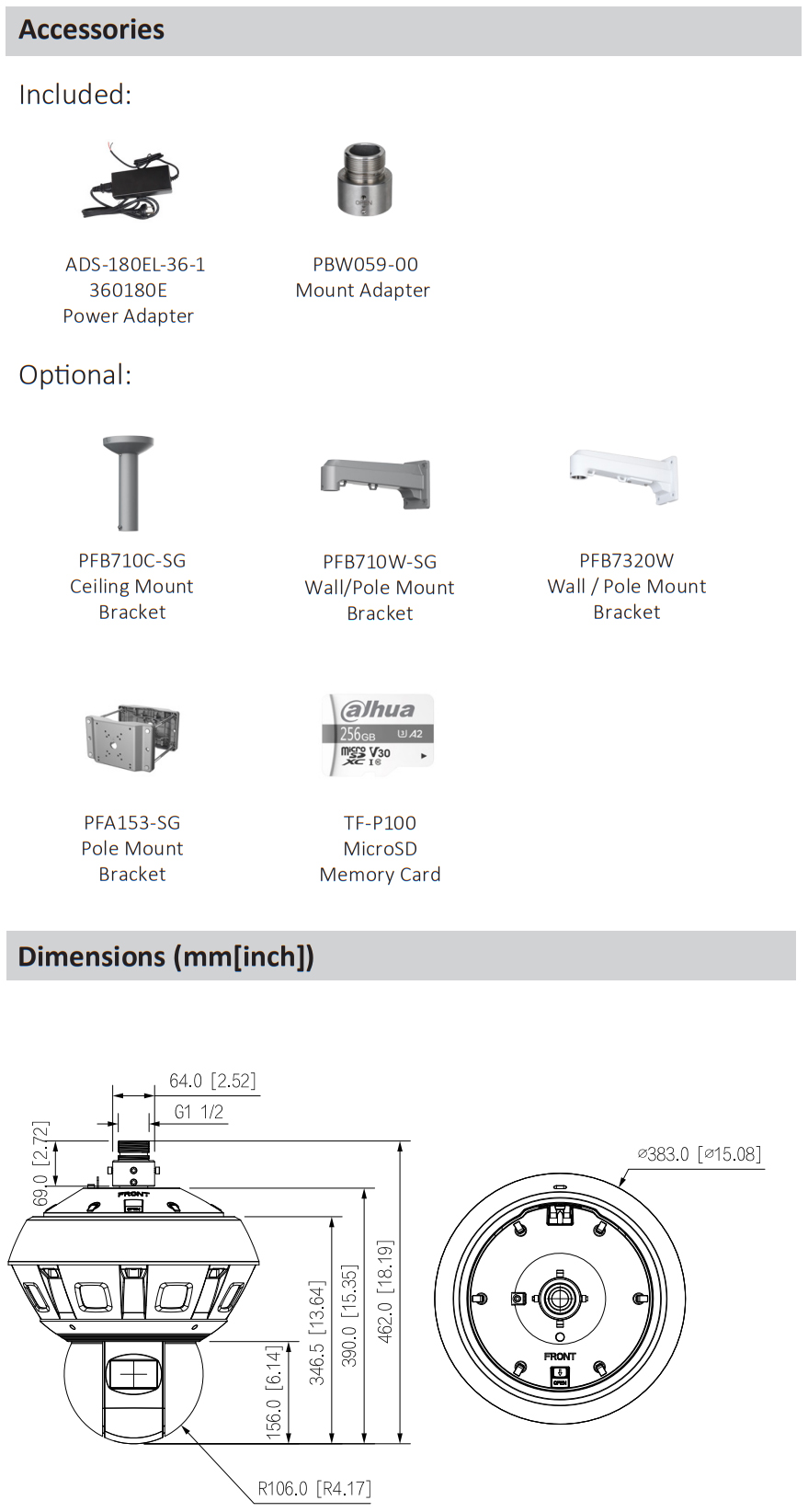

Product Dimensions |
Φ383 mm × 462 mm (15.08" × Φ18.19") |
|
Packaging Dimensions |
500 mm × 500 mm × 658 mm (19.69" × 19.69" × 25.91") (L × W × H) |
|
Net Weight |
14.4 kg (31.75 lb) |
|
Gross Weight |
20.3 kg (44.75 lb) |
|
Installation |
Wall mount; ceiling mount; pole mount |
|
Power Adapter |
Included |
|
Lens |
Included |
|
Power Output |
12 VDC power output, max. current 165 mA, peak current 700 mA |
|
Others |
|
Calibration |
Manual/Auto |
