Camera |
|
Image Sensor |
1/1.8" CMOS |
|
Max. Resolution |
8192 (H) × 3840 (V) |
|
ROM |
8 GB |
|
RAM |
4 GB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.005 lux@F1.6 (Color,30 IRE)
0.0005 lux@F1.6 (B/W,30 IRE)
0 Lux (Illuminator on) |
|
S/N Ratio |
>56 dB |
|
Illumination Distance |
30 m (98.43 ft) (IR LED) |
|
Illuminator On/Off Control |
Auto; Manual |
|
Illuminator Number |
8 (IR LED) |
|
Pan/Tilt/Rotation Range |
Pan: 0°–355°
Tilt: 0°–90°
Rotation:0°–360° |
|
Lens |
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M16 |
|
Focal Length |
2.8 mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 180°; V: 100° |
|
Iris Control |
Fixed |
|
Close Focus Distance |
1.8 m (5.90 ft) |
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|
|
84.0 m
(275.59 ft) |
33.6 m
(110.24 ft) |
16.8 m
(55.12 ft) |
8.4 m
(27.56 ft) |
|
Intelligence |
|
EPTZ |
Yes |
|
IVS (Perimeter Protection) |
Tripwire; intrusion; parking detection |
|
Vehicle Density |
Vehicle density; parking upper limit; vehicle congestion alarm |
|
Crowd Distribution Map |
Crowd map, global people counting; people counting in area |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
|
Video |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Prioritize videos:
Main stream: 8192 × 3840@(1–25/30 fps)
Sub stream: 1280 × 600@(1–25/30 fps)
Third stream: 2304 × 1080@(1–25/30 fps)
Prioritize intelligence:
Main stream: 8192 × 3840@(1–20 fps)
Sub stream: 1280 × 600@(1–20 fps)
Third stream: 2304 × 1080@(1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Stream Capability |
3 streams |
|
Resolution |
8192 × 3840; 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 ×2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 2048× 960; 1520 × 712; 1280 × 600;8192 × 3840; 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 × 2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 2048 × 960; 1520 × 712; 1280 × 600 |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 96kbps–32768 kbps;
H.265: 38kbps–32768 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto;natural;street lamp;outdoor;manual;regional custom;Auto; natural; street lamp; outdoor; manual; custom area |
|
Gain Control |
Auto; Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Privacy Masking |
4 areas |
|
Audio |
|
Audio Compression |
G.711a; G.711Mu; G.726: G.723; PCM |
|
Alarm |
|
Alarm Event |
No SD card; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; parking detection; intensity change; traffic congestion; parking upper limit |
|
Network |
|
Network Port |
RJ-45 (10/100/1000 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
|
User/Host |
20 |
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
|
Browser |
IE: IE 9 and later
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later |
|
Management Software |
DSS |
|
Cyber Security |
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
|
Certification |
|
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15; Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|
Port |
|
RS-485 |
1 (baud rate range: 1200 bps–115200 bps) |
|
Audio Input |
1 channel (RCA port) |
|
Audio Output |
1 channel (RCA port) |
|
Alarm Input |
2 channels in: 5mA 3V–5 VDC |
|
Alarm Output |
2 channels out: 1,000mA 30 VDC/500 mA 50 VAC |
|
Power |
|
Power Supply |
12 VDC/24 VAC/PoE+(802.3at) |
|
Power Consumption |
Basic power consumption: 10.6 W (12 VDC); 11.9 W(24 VAC); 11.9 W (PoE)
Max. power consumption (Intelligence on +IR intensity + WDR): 22.2 W (12 VDC); 25 W (24 VAC); 25 W (PoE) |
|
Environment |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–40 °C to +60 °C (–40°F to +140°F) |
|
Storage Humidity |
≤95% |
|
Protection |
IK10; IP67 |
|
Structure |
|
Casing Material |
Metal + plastic |
|

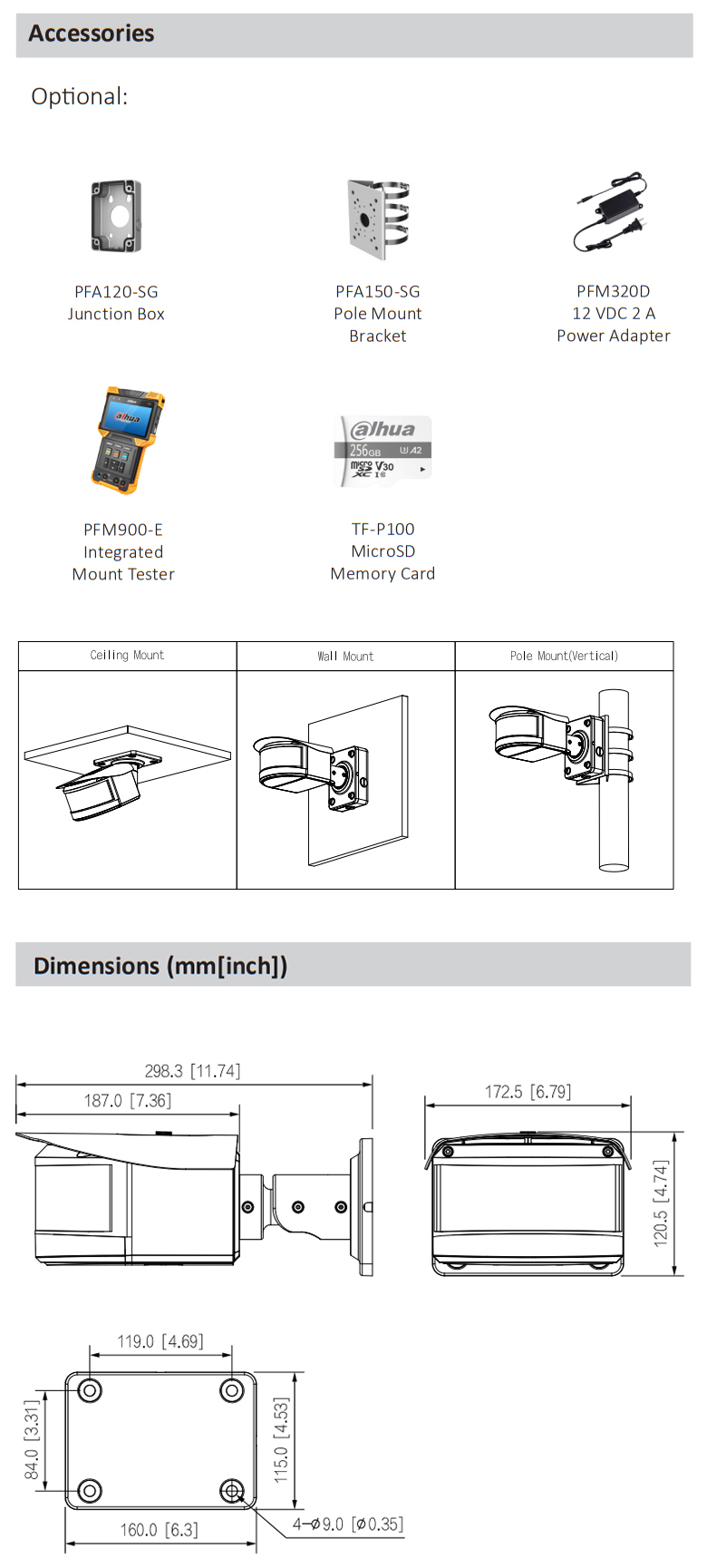

Product Dimensions |
298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79" × 4.74") (L × W × H) |
|
Net Weight |
3.16 kg (6.97 lb) |
|
Gross Weight |
4.06 kg (8.95 lb) |
