IPC-PDBW82041-B360-S2
4 × 5 MP 4-Directional Panoramic Dome Wizmind Network Camera



> Four 5-MP 1/2.7" CMOS image sensor, low illuminance, high image definition.
> 4-channel stream output, and each channel can output max. 5 MP (2592 × 1944) @25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
> Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
> FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
> Web5.0 interface design, which is friendly to users, and easy for operation.
> Built-in IR LED illuminator, and the max. illumination distance is 30 m.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
> IP67 and IK10 protection.
> Anti-corrosion protection (optional).
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
2592 (H) × 1944 (V)
ROM
8 GB
RAM
4 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.005 lux@F1.7 (Color,30 IRE);
0.0005 lux@F1.7 (B/W,30 IRE);
0 lux (Illuminator on)
S/N Ratio
>56dB
Illumination Distance
30 m (98.43 ft) (IR LED)
Illuminator On/Off Control
Auto;Manual
Illuminator Number
8 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type
Motorized vari-focal
Lens Mount
φ14
Focal Length
2.8 mm–12 mm
Max. Aperture
F1.7
Field of View
H: 100°–42°; V: 74°–32°; D: 133°–53°
Iris Control
Fixed
Close Focus Distance
0.8 m (2.62 ft)
DORI Distance
Detect
Observe
Recognize
Identify
66 m–140.4 m
(216.54 ft–460.63 ft)
26.4 m–56.1 m
(86.61 ft–184.06 ft)
13.2 m–28.8 m
(43.31 ft–94.49 ft)
6.6 m–14 m
(21.65 ft–45.93 ft)
Smart Event
IVS
Abandoned object; missing object
Intelligence
IVS (Perimeter Protection)
Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting
Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management.
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Single Stream:
Main stream: 2592 × 1944@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480
(1–30fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Flex Stream:
Main stream: 1600 × 1200@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 3296 × 2472@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
3 streams
Resolution
Single Stream: 5M (2592 × 1944); 2560 × 1440; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240);
Flex Stream: 8M (3296 × 2472); 5M (2592 × 1944); UXGA (1600 × 1200); 1080p (1920 × 1080); 1.3M (1280 × 960); D1 (704 × 576/704 × 480); VGA (640 × 480; CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–17152kbps
H.265: 12 kbps–10240 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
DWDR
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto;Manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Image Stabilization
Electronic Image Stabilization (EIS)
Defog
Yes
Image Rotation
Yes
Mirror
Yes
Privacy Masking
8 areas
Audio
Audio Compression
PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay detection; abnormal number of people detection; people counting; people stay detection; security exception
Network
Network Port
RJ-45 (10/100/1000 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host
20
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser
IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later
Management Software
Smart PSS; DSS; DMSS
Cyber Security
Configuration encryption; trusted execution; Digest; security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
RS-485
1 (baud rate range:1200 bps–115200 bps)
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Alarm Input
3 channels in: 5 mA 3–5 VDC
Alarm Output
2 channels out: 300 mA 12 VDC
Power
Power Supply
12 VDC/PoE+( 802.3at )
Power Consumption
Basic power consumption: 7.4 W (12 VDC); 9.3W (PoE)
Max. power consumption (basic + WDR + IR intensity+ lens switch+ power output): 21.3W (12 VDC); 24.7 W (PoE+)
Environment
Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity
≤95%
Storage Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Protection
IP67; IK10; anti-corrosion protection (optional)
Structure
Casing Material
Metal + plastic

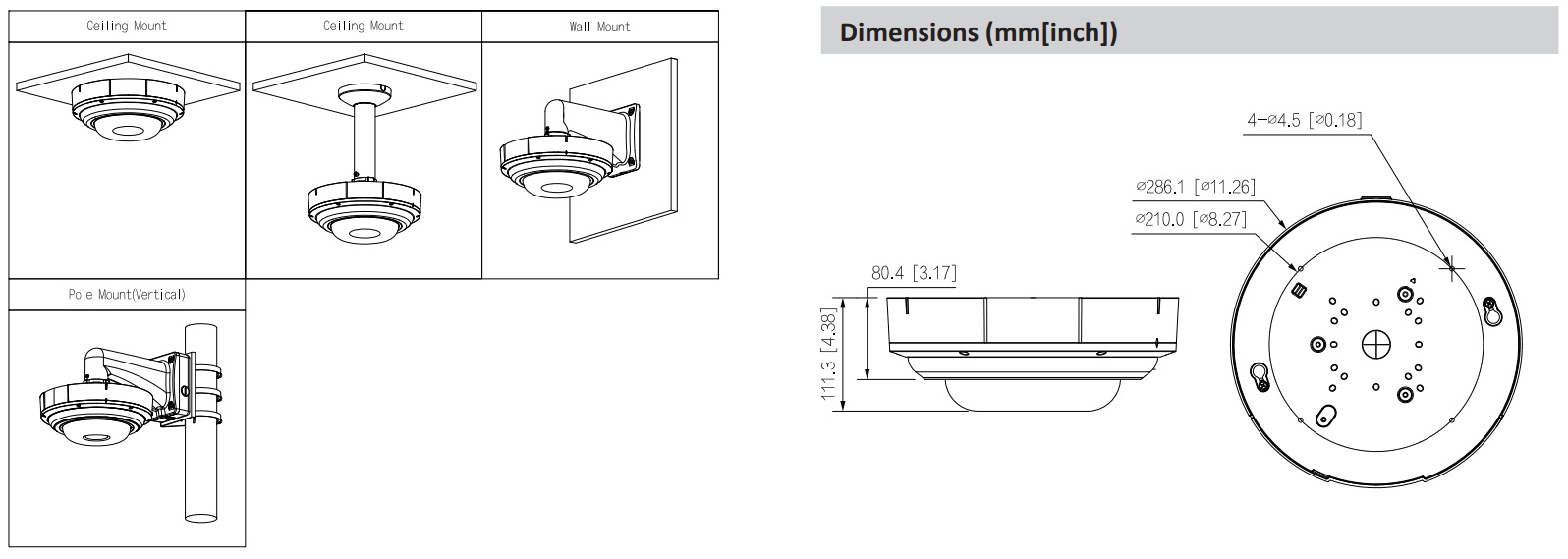

Product Dimensions
111.3 mm × Φ286.1 mm (4.38"× Φ11.26")
Net Weight
2.75 kg (6.06 lb)
Gross Weight
4.5 kg (9.92 lb)
