IPC-EB81242-PD

Parking Space Detection Fisheye WizMind Network Camera

> Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy.

> Support up to 12 parking space status detection.

> 360° panoramic view without dead angles in its monitoring range, making it cost-effective.

> Outputs max. 3008 × 3000@20 fps.

> 7 indicator colors that can be customized to display the status of parking spaces.

> H.265 codec, high compression rate, ultra-low bit rate.

> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> DWDR, ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply, 12 VDC power output, and max. current 165 mA, easy for installation.

> IP67 protection.

Camera
Image Sensor	1/1.7" CMOS
Max. Resolution	3008 (H) × 3000 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.01 lux (Color)
S/N Ratio	> 56 dB
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	1.85 mm
Max. Aperture	F2.0
Field of View	Horizontal: 180°; Vertical: 180°; Diagonal: 185°
Iris Control	Fixed
Close Focus Distance	0.4 m (1.31 ft)
DORI Distance	Detect	Observe	Recognize	Identify
	40.0 m (131.23 ft)	16.0 m (52.49 ft)	8.0 m (26.2 ft)	4.0 m (13.12 ft)
	DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Professional, intelligent
Parking Space Management (Fisheye)	Supports the mode of 12 parking spaces and 6 parking spaces
Fisheye
Installation	Ceiling mount; wall mount; ground mount
Decoding Mode	Back-dewarp
Display Mode	Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)
Video
Video Compression	H.265; H.264; H.264H; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 2432 × 2432@(1–20 fps ) sub stream: 704 × 576@(1–20 fps)/704×480 @(1–20 fps) third stream: 3008 × 3000@(1–20 fps)
Stream Capability	3 streams
Resolution	3008 × 3000; 2432 × 2432; 2304 × 2304; 2144 × 2144; 1536 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H264: 8 kbps–16384 kbps H265: 8 kbps–16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Privacy Masking	4 areas
Alarm
Alarm Event	No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception; (parking space) occupied; (parking space) available
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser	With plug-in: IE: IE 9 and later Chrome: Chrome 86 and later Firefox: Firefox 86 and later Without plug-in: Edge Chrome: Chrome 86 and later Firefox: Firefox 86 and later
Management Software	PMS
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply	12 VDC/PoE+ (802.3at)
Power Consumption	Basic: 6.054 W (12 VDC); 5.893 W (PoE) Max. (ICR + indicator intensity + power output): 8.845 W (12 VDC); 8.325 W (PoE) Heating: 3 W (12 VDC); 3 W (PoE)
Environment
Operating Temperature	–30 °C to +45 °C (–22 °F to +113 °F)
Operating Humidity	≤ 95%
Storage Temperature	–30 °C to +70°C (–22 °F to +158 °F)
Protection	IP67
Structure
Casing	Metal + plastic

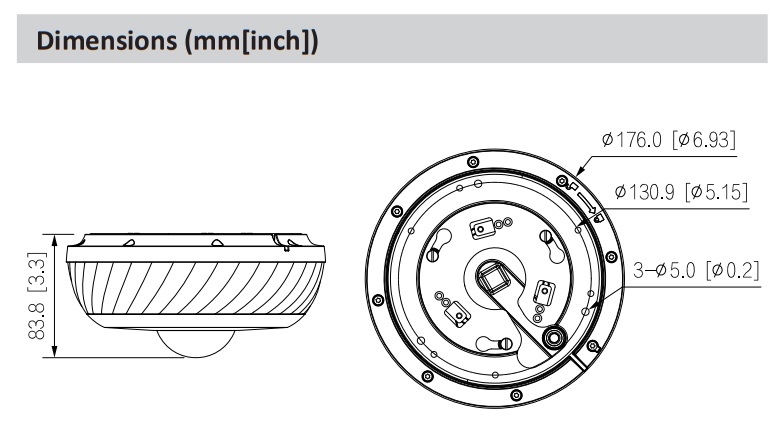

Product Dimensions	83.8 mm × Φ176 mm (3.3" × Φ6.9")
Net Weight	0.776 kg (1.71 lb)
Gross Weight	1.19 kg (2.62 lb)
