Camera |
|
Image Sensor |
1/1.7" CMOS |
|
Max. Resolution |
4000 (H) × 3000 (V) |
|
ROM |
4 GB |
|
RAM |
2 GB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.01 Lux@F2.0 (Color, 30 IRE)
0.001 Lux@F2.0 (B/W, 30 IRE)
0 Lux (Illuminator on) |
|
S/N Ratio |
> 56 dB |
|
Illumination Distance |
up to 10 m (32.81 ft) (IR) |
|
Illuminator On/Off Control |
Auto/Manual |
|
Illuminator Number |
3 (IR LED) |
|
Lens |
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M12 |
|
Focal Length |
1.85mm |
|
Max. Aperture |
F2.0 |
|
Field of View |
Horizontal: 185°;
Vertical: 180° |
|
Iris Control |
Fixed |
|
Close Focus Distance |
0.4 m (1.31 ft) |
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|
|
40.0 m (131.23 ft) |
16.0 m
(52.49 ft) |
8.0 m
(26.2 ft) |
4.0 m
(13.12 ft) |
|
|
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
|
Smart Event |
|
Heat Map |
Yes |
|
Professional, intelligent |
|
IVS (Perimeter Protection) |
Intrusion; tripwire |
|
People Counting |
Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time.
Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time.
Supports 4 queue management rules to count number of people queuing and queue time in real time, and it will trigger alarm linkage when the number of people queued or queue time exceeds the threshold. It can display and export reports based on month, week, day or custom time |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Fisheye |
|

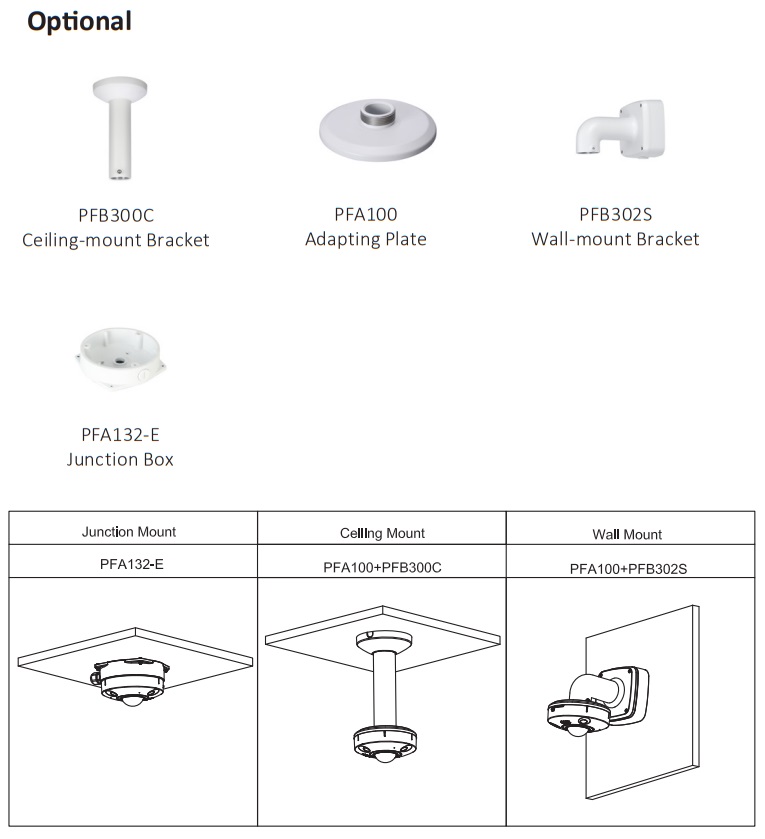

Installation |
Ceiling mount; wall mount; ground mount |
|
Decoding Mode |
Front-dewarp; Back-dewarp; Front-dewarp+Back-dewarp |
|
Display Mode |
Front-dewarp (hardware decoding):1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R
*O: Fisheye image view; P: Panoramic image view; R: Region image view
Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
|
Video |
|
Video Compression |
H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main stream: 4000 × 3000@(1–25/25 fps)
sub stream: 704 × 576@(1–25/30 fps)
third stream: 1280 × 960@(1–17/17 fps)
Fisheye mode:
1O (4000 × 3000)
1P (4096 × 1024)
2P (2432 × 2432)
1R (1216 × 1216)
2R (2432 × 2432)
4R (2432 × 2432)
1O + 3R (2432 × 2432)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Stream Capability |
3 streams |
|
Resolution |
4000 × 3000; 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H264: 8 kbps–16384 kbps
H265: 3 kbps–16384 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Defog |
Yes |
|
Privacy Masking |
4 areas |
|
Audio |
|
Built-in MIC |
Yes, built-in dual Mic |
|
Audio Compression |
PCM; G.711A; G.711Mu; G.726; G.723 |
|
Alarm |
|
Alarm Event |
No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception |
|
Network |
|
Network Port |
RJ-45 (10/100/1000 Base-T) |
|
SDK and API |
Yes |
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version) |
|
User/Host |
20 |
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
|
Browser |
IE: IE11, IE10
Chrome: 48.0.2564.116
Firefox: 48.0.2
Edge: 42.17134.1.0 |
|
Management Software |
Smart PSS; DSS; DMSS |
|
Certification |
|
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
|
Port |
|
Audio Input |
1 channel (RCA port) |
|
Audio Output |
1 channel (RCA port) |
|
Alarm Input |
2 channel in: wet contact,5mA 3V–5 VDC |
|
Alarm Output |
2 channels out: dry contact,1,000mA 30 VDC/500mA 50 VDC |
|
Power |
|
Power Supply |
12 VDC/PoE+ |
|
Power Consumption |
Basic: 6.5 W (12 VDC); 6.1 W (PoE)
Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE)
Heating: 3 W (12 VDC); 3 W (PoE) |
|
Environment |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
|
Protection |
IP67; IK10 |
|
Structure |
|
Casing |
Metal |
|
Product Dimensions |
59.8 mm × Φ149.8 mm (2.35" × Φ5.90") |
|
Net Weight |
0.79 kg (1.74 lb) |
|
Gross Weight |
1.21 kg (2.67 lb) |
