3050S middle outdoor pan/tile, can be equipped with IR LEDs, high temperature resistancce, anti-corrosion...
|
|
| |
■ Product Introduction
ST-3050S outdoor dome pan uses magnetic in-phase motor, aluminum alloy material, casting forming, high temperature resistance, aging resistance, anti-corrosion, anti-wind, waterproof and acid rain proof.
■ Technique Parameter
|
Model |
ST-3050S |
|
Power supply |
24VAC 50/60Hz, 110VAC 60Hz, 220VAC, 50Hz |
|

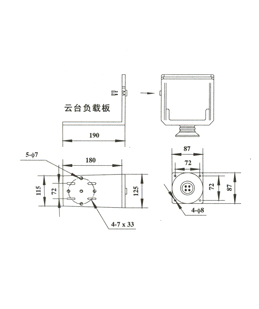

Dimension |
235x181x270 |
|
Weight |
6.5Kg |
|
Turning angle |
Horizontal: 0°～350° |
|
Vertical: -10°～350° |
|
Turning speed |
Horizontal: 4.5°/s |
|
Vertical: 4.5°/s |
|
Load |
Horizontal: 30Kg |
|
Vertical: 17Kg |
|
Port |
1. Auto 2. Left. 3. Right. 4. Up, 5. Down. 6. Common |
|
Working temperature |
-10℃～+55℃ | |
 |
|
|
|
