Features:
Full-motion CCTV video at distance up to 350m when used with any passive Sectec transceiver or hub.
Up to 1500m if matching with active video balun
Mini-coax pigtail supports in-camera mounting in most dome cameras
Reliable screwless UTP terminal connection
No power required
Exceptional interference rejection
Built-in transient protection
Supports “ up-the-coax” type control signal up to 350m
Limited lifetime warranty
ST-VB203C series transceiver is a passive (non-amplified) device that allows the transmission of realtime
Monochrome or color video over unshielded twisted-pair (UTP) telephone wire. Baseband (composite) signal of any type are supported.

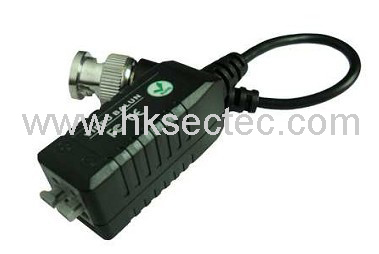

ST-VB203C series transceiver has a 9’’ mini-coax pigtail lead which allows in-camera enclosure mounting in most dome cameras and a great number of mounting options in general at both ends of the system. It is capable of delivering a fully equalized signal to the DVR when used with any active Sectec receiver, yet is compatible with all of Sectec passive products for applications under 350m. ST-VB203C series video transceiver also incorporates improved transient protection that eliminates the need for a ground screw.
The unparalleled interference rejection and low emissions of ST-VB203C series video balun allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.
Technical specifications:
|
Video |
Frequency response |
DC to 8 MHz |
|
Attenuation |
0.5dB type |
|
Common-mode/Differential mode rejection
15KHz to 5MHz |
60 dB type |
|
Impedance |
Coax, male BNC |
75 ohms |
|
UPT, Screwless terminal block |
100 ohms |
|
Power |
No external power requied |
|
Enviromental |
Ambient amblent temperature |
-30 to +70℃ |
|
Humidity (non-condensing) |
0-95% |
|
Transient immunity |
Per ANSI/IEEE 587 C62.41 |
|
Wire type |
Network wiring |
One un-shield twisted pair |
|
|
24-16 AWG (0.5-1.31mm) |
|
Category type |
2 or better |
|
Impedance |
100± 20 ohms |
|
DC loop resistance |
52 ohms per 1,000ft |
|
18 ohms per 100ft |
|
Differential capacitance |
62 pF/m max |
|
Mechanical |
Dimension(mm) |
39*16*19 (excluding connectors) |
|
Weight |
46g/pair | |
