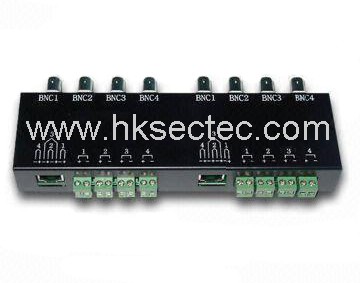

8CH passive twisted pair video transceiver

Video transmission via UTP CAT5 cable

No power required

Transmission distance: 350 to 600m

PAL, NTSC and SECAM full formats compatible real time video transmission

Adjustable brightness and sharpness

Excellent interference suppression

Built-in surge and lightening strike protection

Anti-ground potential

High video quality

Adjustable distance with the range from 0 to 1,500m

Output indicator power: DC or AC 9-12V SMT

Input level: 1V-pp/75Ω full TV signal, BNC plug

Bandwidth: 20MHz/3dB under the situation of 500m

Differential gain: 2%

Differential phase: 2o

K coefficient: 3%

SNR weighted: 60dB

Common-mode rejection ratio: 60dB0, 6MHz

Gain equilibrium 33.5dB, 5MHz
