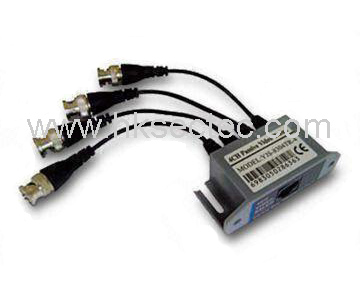

4CH passive twisted pair video transceiver

Video transmission via UTP CAT5 cable

No power required

Transmission distance: 350 to 600m

Frequency response: DC-8MHz

CMRR (common mode rejection ratio): 60dB

Impedance: 75Ω (BNC), 100Ω (RJ45)

Working temperature: -10 to 70°C

Storage temperature: -30 to 70°C

Signal system: NTSC, PAL, SECAM and CCIR systems

External dimensions: 75 x 50 x 25mm (excluding BNC)

Type of the required wire: unshielded Cat-5 or above twisted pair wire

Characteristic impedance: 100 ± 20Ω

DC loop resistance: 18Ω/100m

Dimensions: 75mm×50mm×25mm
