ST-VBW234

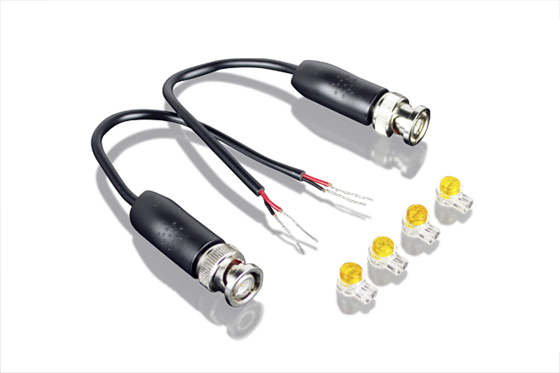

ST-VBW234 is a single channel passive video balun/transceiver. Being seamless it’s waterproof. Being tiny enough it can be easily equipped saving space.

Description

ST-VBW234 is a single channel passive video balun/transceiver. Being seamless it’s waterproof. It allows transmission of real-time and high-performance color or monochrome (B/W) CCTV video over UTP cable. Being tiny enough it can be easily equipped saving space.ST-101P-B1 can be used as either transmitter or receiver.

Features

·No power required.
·Transmission signal: 1 Vpp composite video.
·Transmission distance up to 300m working with SECTEC passive transceivers·

Transmission distance up to 1200m working with SECTEC active receivers·

Compatible with worldwide formats including PAL, NTSC, SECAM.
·Built-in surge&transient protection.
·Super interference rejection.

Specification

Items		ST-VBW234
Video Transmission Properties	Compatible with	All Baseband Signals as PAL, NTSC, SECAM
	Transmitting Band	0～6MHz（0.5db type）
	Interference Rejection	>60dB
	Attenuation	<1.5dB
	Distance	0～300m(Passive) 0～1500m（Active）
Connection Properties	Video Connector	1* BNC-M; Impedance:75Ω
	UTP Cable Connector	Impedance: 100Ω
	Video Input Protection (as transmitter)	2KV(common mode),10/700us IEC61000-4-5/1955
	Video Output Protection (as transmitter)	2KV(different mode),10/700us IEC61000-4-5/1955
Physical Properties	shell	ABS Engineering Plastic
	Color	Black
	Length	16.5mm
Environmental	Operating Temperature	-20°C~70°C
	Relative Humidity	0~95%(non-condensing)
	Storage Temperature	-20°C-70°C
Casing	Gross Weight	20g
Casing	Casing Volume	481515mm
