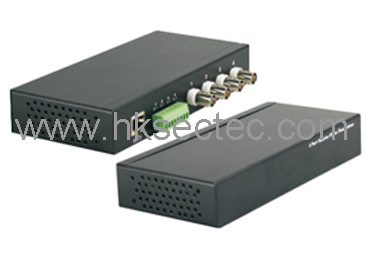

ST-214/M is a passive video transceiver. Transmission distance up to 300m if with passive video balun and up to 800m if with active video balun
|
|
| |
|
Description |
|
ST-214/M is a multi-channel passive video transceiver. Use CAT 5/5e/6 UTP cable as transmission medium, can realize real-time transmit 4 channel color or PAL、NTSC、SECAM composite video signal . In practical project , the device can work as transmitter or receiver ,and it can also work with SECTEC series passive or active video UTP transceivers. It features long distance transmission , good transmission effect, strong anti-interference. Widely used in security, teaching industry and other complex system environment.
|
|
Features |
|
·Power: no power required, simplified project wiring;
·Transmission effect: plug&play,real-time transmit CCTV video signal, video is clear and stable;
·Transmission distance: working with passive transceiver is 300m; working with active transceiver is 800m;
·Properties: 4 channel transmit or receive
·Safety : anti-interference, super lighting protection, anti-static;
·Appearance design: MIT standard outer shell design, sophisticated technology ,high hardness steel rust, stable and durable;
·Installation: Thumb screws on the rack, unified management |
Specification
|
|
Item |
Description |
|
Function |
Channels |
4ch |
|
Transmission Distacne |
0-300m(With Passive Products)
0-1500m(With Active Products) |
|
Video Properties |
Video Connector |
BNC-F |
|
UTP Cable Connector |
8 pin green terminal block,RJ-45 |
|
Compatibility |
PAL,NTSC,SECAM etc |
|
Signal Transmission Band |
0-6MHz |
|
Interference Rejection |
>60db |
|
Video Connector Protection |
2KV(Common Mode)Per:IEC61000-4-5 |
|
UTP Cable Connector Protection |
2KV(Different Mode)4KV(Common mode) Per:IEC61000-4-2 |
|
Protection |
ESD |
Contact Discharge:6000V Air Discharge:8000V Per:IEC61000-4-2 |
|
Reliability |
MTBF |
>10000H |
|
Physical Properties |
Size |
180*100*32mm |
|
Outer Shell |
Iron Metal |
|
Color |
Black |
|
N.W. |
450g |
|
Environment |
Operation Temperature |
0-55°C |
|
Storage Temperature |
-20-70°C |
|
Relative Humidity |
0-95%(non-condensing) | |
| |
|
|
|
|
