Products  >> CCTV accessories >> UTP Video Balun

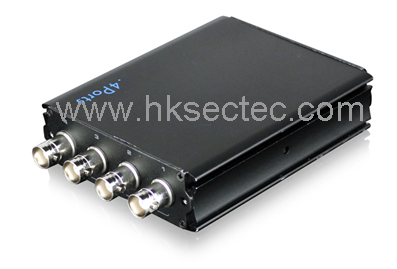

ST-214
ST-214 is a passive transceiver, built in TVS for surge protection,3 level lightningproof, Color video up to 300m with passive balun, and 800m with active balun


Description
T-214 is a 4channel passive video balun,it allows transmit 4channel color or mono PAL、
NTSC、SECAM video format over UTP Cat 5/5e/6.In the project,it can work with ST-1XX series
passive or active video balun,it is featured with long distance transmission,high transmission quality,
strong anti-electromagnetic radiation capability,it is widely used in video surveillance and control system;

Features
Power supply:No need additional power;
Transmission effect:realtime transmit PAL、NTSC、SECAM video format,image clear and stable;
Transmission distance:distance up to 300m working with passive video balun;distance up to 1500m
working with active video balun;Main function:syn transmission 4channel video signals
over 1pcs network cable Anti-interference protection:super lightning surge protection,anti-static capability;
Appearance structure:compact,support MIT rack,easy installation;


Item
           Description
Function
Transmission Channel
4ch
`Video Properties
Video Connector
4ch
Transmission Distance
0-300m(with pasive products)
0-1500m(with active products)
Coaxial video Conenctor
Femal BNC Port
SECTEC Cable Video Connector
Female RJ45 Port,8ch Screw Push Terminal
Compatability
PAL,NTSC,SECAM
Siganl Transmission Width
0-6MHz
Protection
Anti-Interference
>60dB
Coaxial Video Connector Surge
2KV Per:IEC 661000-4-5
Communication Port Surge Protection
2KV(different mode) 4KV(common mode) per:IEC 61000-4-5
ESD
1a contact discharge level 3
1b air discharge level 3
per:IEC 61000-4-2
Environment
Operation Temperature
0-55°C
Storage Temperature
-20-70°C
Relative Humidity
0-95%(non-condensing)
