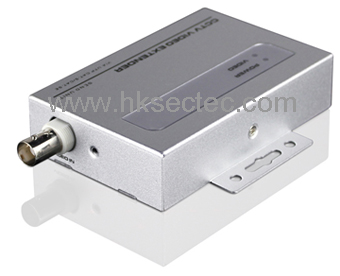

ST-101T is a active video transceiver. It features long distance transmission , good transmission effect, strong anti-interference.
|
|
| |
|
Description |
|
ST-101T is a active video transceiver .Use CAT 5/5e/6 SECTEC cable as transmission medium,
can realize realtime transmit 1 channel color or PAL、NTSC、SECAM composite video signal.
In practical project, work together with ST-1XXAR series active receivers.It features long
distance transmission , good transmission effect, strong anti-interference. Widely used in security,
teaching industry and other complex system environment.
|
|
Features |
|
·Power:12～40VDC/9～24VAC；
·Transmission effect: plug&play,real-time transmit CCTV video signal, video is clear and stable;
·Distance:working with active receiver can up to 1800m;
·Properties: single channel transmitter ,DIP adjust transmission distance;
·Safety: anti-interference, super lighting protection, wide voltage AC/DC input;
·Appearance design: video,power indicator, sophisticated technology ,high hardness steel rust,
stable and durable;
·Installation:BNC-M connector; screw push-terminal,wiring stable and reliable.
|
|
Specification
|
|
Item |
Description |
|
Function |
Transmitter Input |
1ch |
|
Receiver Output |
2ch |
|
Transmission Distance |
1-1800m |
|
Power Proterties |
Adaptive Voltage Arrange |
12v-40v DC or 9v-24v AC |
|
Power Consumption |
<1.5W |
|
Over-voltage Protection |
DC 40V |
|
Surge&Transient Protection |
>2KV/1KA Per:IEC6100-4-5 |
|
Video Properties |
Video Connector |
BNC-F |
|
SECTEC Cable Connector |
Green Terminal BLock |
|
Compatible With |
PAL,NTSC,SECAM etc. |
|
Signal Transmission Band |
0-6MHz |
|
Interference Rejection |
>75db |
|
Video Connector Protection |
2KV(Common Mode)Per: IEC6100--5 |
|
SECTEC Cable Connector Protection |
2KV(Different) 4KV(Common Mode) Per:IEC61000-4-5 |
|
Adjustment |
Adjusting Switch |
4 Blue Switches per channel |
|
Adjusting Method |
Please refer to "Adjustment Diagram" |
|
LED Indicator |
Power LED |
1 RED |
|
Signal LED |
4 yellow |
|
Protection |
ESD Protection |
Contact Discharge:6000V Air Discharge:8000V Per:IEC61000-4-2 |
|
Reliability |
MTBF |
>5000H |
|
Physical Properties |
Size(LWH) |
190*95*44.5mm |
|
Outer Shell |
Iron Metal |
|
Color |
Black |
|
N.W. |
595g |
|
Environment |
Operation Temperature |
0-50°C |
|
Storage Temperature |
-20-80°C |
|
Relative Humidity |
0-95%(non-condensing) |
|
| |
| |
|
|
|
|
