Description

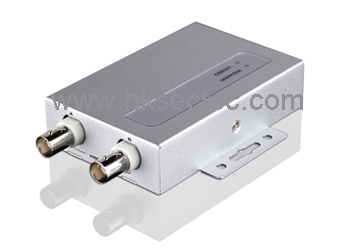

ST-101R is a single channel active video receiver. It adopts the Cat5/5e/6 cable as
the transmission medium, being able to receive single channel color or B/W PAL、NTSC、
SECAM video format in real time. In actual project, it can work with SECTEC passive
video transceiver or SECTEC passive transmitter as a pair. ST-101R features long
distance, excellent transmitting image and anti-interference. It’s widely used in the
projects like security monitoring project.
Features
Power Supply: 12～40VDC/9～24VAC
Transmission: PAL、NTSC 、SECAM format in real time, Excellent image and stable
Transmission Distance: Up to 1200m.
Main Function: Adapting single channel input, dual channel output. DIP Adjusting mode.
Safety Performance: Wide Voltage with Direct current Input, excellent lighting protection
technology, ESD and anti-interference ability.
Smart Design: Delicate Outlook, Supporting MIT creative framework, easy for installation.
Specification
|
Item |
Description |
|
Function |
Transmission Channel |
1 Channel |
|
Video Output |
2-Channel |
|
Transmission Distance |
0-600m(With Passive Product) 0-1200m(With Active Product) |
|
Power |
Voltage Range |
12V-40V DC or 9V-24V AC |
|
Consumption |
<1W |
|
Video Transmission and property |
Coaxial Video Port |
Female BNC |
|
Twisted Pair port |
5 Screw Fix Port |
|
Compatible System |
PAL、NTSC、SECAM |
|
Signal Transmission Bandwidth |
0～6MHz |
|
Anti-interference |
>75dB |
|
Adjusting Mode |
Adjusting Way |
Blue 4 bit side DIP |
|
DIP Mode |
Manual |
|
Status Indicator |
Power LED |
Red |
|
Signal LED |
Yellow |
|
Protection |
Power Port Surge Protector |
2KV/1KA Per:IEC6 1000-4-5 |
|
Coaxial Cable Port Surge Protector |
2KV Per:IEC6 1000-4-5 |
|
Video Balun Communication Port Surge Protector |
2KV(different) 4KV(common mode)
Per:IEC6 1000-4-5 |
|
ESD |
1a contact discharge level 3
1b air discharge level 3
Per: IEC6 1000-4-2 |
|
Environment |
Working Temperature |
0～55℃ |
|
Storage Temperature |
-20～70℃ |
|
Humidity(non condense) |
0～95% |
|
Property |
Size |
115mm×82mm×22mm（with port length） |
|
Shell |
Iron |
|
Shell |
Silver |
|
N.W. |
180g |
|
Stability |
MTBF |
>20000hrs |
|
