Description

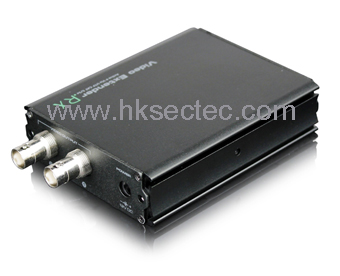

ST-201R is an active receiver. Use CAT 5/5e/6 SECTEC cable as transmission medium,
can real-time receive 1 channel color or mono PAL、NTSC. In practical project, can work
together with SECTEC passive transceivers or SECTEC active transmitters.
It features long transmission distance, good transmission effect, super anti-interference,
widely used in radio, audio monitoring these voice system .
Features
Power：12～40VDC;
Transmission effect: plug & play, real-time transmit CCTV video, clear and reliable;
Distance: work with passive transceiver is 900m,working with active transceiver is 1200m;
Properties: single channel receive, knob adjust distance;
Safety: anti-interference, super lighting protection, wide voltage DC/AC power;
Appearance: MIT Standard outer shell design, sophisticated technology.
Specification
|
Item |
Description |
|
Function |
Transmission Channel |
1 Channel |
|
Video Output |
2 Channel |
|
Transmission Distance |
0～900m(Passive) 0～1200m(Active) |
|
Power |
Voltage Range |
9～40VDC |
|
Consumption |
<1W |
|
Video Transmission and connector |
Coaxial Video Interface |
Female BNC |
|
Twisted pair video interface |
2pin crew crimp |
|
Compatible format |
PAL/NTSC/SECAM |
|
Signal bandwidth |
0～6MHz |
|
Anti-interference |
>75dB |
|
Adjusting mode |
Adjusting mode |
Continuous |
|
Status Indicator |
Power LED |
Red |
|
Signal LED |
Yellow |
|
Polarity LED |
/ |
|
Color Signal LED |
/ |
|
Protection Level |
Power Connector Surge Protector |
2KV/1KA Per：IEC61000-4-5 |
|
Coaxial Video Interface, Surge Protection |
2KV Per：IEC61000-4-5 |
|
Twisted-pair Communication Interface Surge Protection |
2KV(different-mode) 4KV(Common-mode)
Per:IEC61000-4-5 |
|
ESD |
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per：IEC61000-4-2 |
|
Environment |
Operating Temperature |
0～50℃ |
|
Storage Temperature |
-20～70℃ |
|
Humidity |
0～95% |
|
Physical Properties |
|
131mm×82mm×25mm（with Connector Length） |
|
Shell
|
Aluminum material |
|
Color |
Black |
|
N.W. |
207g |
|
Stability |
MTBF |
>20000hrs |
|
