Description

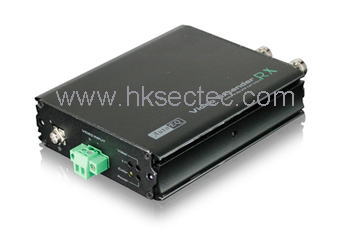

ST-201R/3 is a single channel active AGC video receiver. It adapts the Cat5/5e/6 cable
as the transmission medium, being able to receive single channel color or B/W PAL, NTSC
video format in real time. In actual project, it can work with SECTEC passive video transceiver
or SECTEC active transmitter as a pair. ST-201R/3 features long distance, excellent
transmitting image and anti-interference. It’s widely used in the projects like security monitoring project.
Features
Power Supply: 12~40VDC;
Transmission: PAL、NTSC format in real time, Excellent image and stable;
Transmission Distance: Up to 1500m working with passive transceivers,
up to 1800m working with active receivers;
Main Function: Adapting Video balun to receive video. Dual Channel output;
Safety Performance: Wide Voltage with Direct current Input, excellent lighting protection
technology, ESD and anti-interference ability;
Smart Design: Delicate Outlook, Supporting MIT creative framework, easy for installation.
Specification
|
Item |
Description |
|
Function |
Transmission Channel |
1 Channel |
|
Video Output |
2 Channel |
|
Transmission Distance |
0～1500m(Passive) 0～1800m(Active) |
|
Power |
Voltage Range |
12～40VDC |
|
Consumption |
<3W |
|
Video Transmission and connector |
Coaxial Video Interface |
Female BNC |
|
Twisted pair video interface |
2 pin crew crimp |
|
Compatible format |
PAL、NTSC |
|
Signal bandwidth |
0～6MHz |
|
Anti-interference |
>75dB |
|
Adjusting mode |
Adjusting mode |
AGC |
|
Status Indicator |
Power LED |
Red |
|
Signal LED |
Yellow |
|
Polarity LED |
Yellow |
|
Color Signal LED |
Yellow |
|
Protection Level |
Power Connector Surge Protector |
2KV/1KA Per：IEC6 1000-4-5 |
|
Coaxial Video Interface, Surge Protection |
2KV Per：IEC6 1000-4-5 |
|
Twisted-pair Communication Interface Surge Protection |
2KV(different-mode) 4KV(Common-mode)
Per:IEC6 1000-4-5 |
|
ESD |
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per：IEC61000-4-2 |
|
Environment |
Operating Temperature |
0～55℃ |
|
Storage Temperature |
-20～70℃ |
|
Humidity |
0～95% |
|
Physical Properties |
Size(L*W*H) |
131mm×82mm×25mm（with Connector Length） |
|
Shell |
Aluminum |
|
Color |
Black |
|
N.W. |
207g |
|
Stability |
MTBF |
>20000hrs |
|
