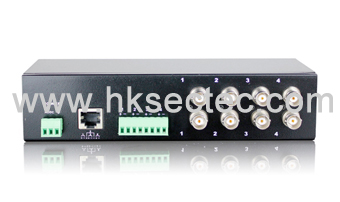

ST-2104R is a 4ch active video receiver. It features long distance transmission , good transmission effect, strong anti-interference.
|
|
| |
|
Description |
|
ST-2104R is a active video receiver. Use CAT 5/5e/6 cable as transmission medium，
can realize realtime transmit 4 channels color or PAL、NTSC、SECAM composite video signal.
In practical project ,working together with Sectec passive transceiver or Sectec active
transmitter. It features long distance transmission , good transmission effect, strong anti-interference.
Widely used in security, teaching industry and other complex system environment .
|
|
Features |
|
·Power:12VDC;
·Transmission effect: plug&play,real-time transmit CCTV video signal, video is clear and stable;
·Distance:working with active receiver can up to 1400m;
·Properties: single channel transmitter, DIP adjust transmission distance;
·Safety: anti-interference, super lighting protection, wide voltage AC/DC input;
·Appearance design: video,power indicator, sophisticated technology ,high hardness steel rust, stable and durable;
·Installation:BNC-M connector; screw push-terminal,wiring stable and reliable. |
|
|
|
Specification
|
Items |
ST-2104R |
|
Power properties |
Adaptive Voltage Arrange |
12V-40V DC or 9V-24V AC(50Hz) |
|
Power Consumption |
<5w |
|
Connectors |
Green Terminal Block |
|
Video |
Compatible with |
All Baseband Signals, |
|
Transmitting properties |
including PAL, NTSC, SECAM |
|
Signal Band |
250MHz(-3db) |
|
Balance Band |
0-6MHz |
|
Transmission Distance(up to) |
1200m (working with active baluns) |
|
Over UTP Cable |
600m (working with passive baluns) |
|
Attenuation |
<1.5 dB |
|
Interference Rejection |
>75db |
|
Connection |
Video Output Connectors |
4*2 BNC-F; Impedance: 75 ohms |
|
properties |
UTP Cable Connectors |
RJ-45 or Green Terminal Block |
|
Impedance: 50 ohms |
|
Protections |
Video Output Protection |
2KV(common mode),10/700us |
|
IEC61000-4-5/1955(GB/T 17626.5-1999) |
|
Video Input Protection |
2KV (different mode), |
|
4KV (common mode) , 10/700us |
|
IEC61000-4-5/1955(GB/T 17626.5-1999) |
|
Video Input Protection for Over Current |
Protection for Over 100mA |
|
Video Adjustments |
Adjusting Switches |
4 Blue Switches per channel |
|
Adjusting Categories |
For Passive Balun |
|
0-50m,50-250m,250-400m,400-500m,500-700m |
|
For Active Balun |
|
0-600m,150-750m,300-900m,450-1050m,600-1200m |
|
Indicators |
Power LED |
Red |
|
Signal LED |
Yellow |
|
Stability |
MTBF |
>50,000h |
|
Physical |
Dimensions(LWH) |
190*95*44mm |
|
Properties |
Housing Material |
Metal |
|
Unit Color |
Black |
|
Environmental |
Operating Temperature |
-20°C ~70°C |
|
Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40°C ~150°C |
|
Casing |
Gross Weight |
746g |
|
Casing Volume(LWH) |
122* 86* 30mm | | |
| |
|
|
|
|
