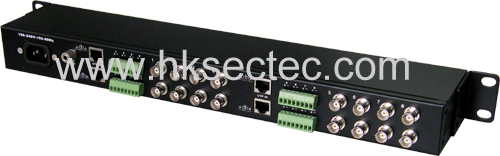

ST-2116R is 16 channel active (amplified) video receiver. In standard 1U structure ST-2116R is rack-mountable and excellent for multi-point surveillance.
|
|
| |
|
Description |
|
ST-2116R is a 16 channel active (amplified) video receiver. It allows reception of
real-time and high-performance color or monochrome (B/W) CCTV video over UPT
cable. Adjusting switches are available for quality image according to different transmission
distances. In standard 1U structure ST-2116r is rack-mountable and excellent for multi-point surveillance. |
|
Features |
|
·Power supplied :90-240V AC.
·Transmission signal: 1 Vpp composite video.
·Transmission distance up to 1200m working with SECTEC active transmitter.
·Transmission distance up to 600m working with passive transceivers.
·RJ-45 jack or green terminal block to be choosed from for SECTEC connection.
·Compatible with worldwide formats including PAL, NTSC, SECM.
·Higher standard built-in surge&transient protection with grounding rod on front panel.
·Super interference rejec |
|
|
|
Specification |
|
Items |
ST-2116R |
|
Power Properties |
Adaptive Voltage Arrange |
100-240V AC(50-60Hz) |
|
Power Consumption |
<5w |
|
Connector |
Standard AC Jack |
|
Video
Transmitting Properties |
Compatible with |
All Baseband Signals,
including PAL, NTSC, SECAM |
|
Signal Band |
250MHz(-3db) |
|
Balance Band |
0-6MHz |
|
Transmission Distance(up to)
Over SECTEC Cable |
1200m (working with active baluns)
900m (working with passive baluns) |
|
Attenuation |
<1.5 dB |
|
Interference Rejection |
>75db |
|
Connection
Properties |
Video Output Connectors |
16*2 BNC-F; Impedance: 75 ohms |
|
SECTEC Cable Connectors |
2 RJ-45 or Green Terminal Block
Impedance: 50 ohms |
|
Protections |
Video Output Protection |
2KV(common mode),10/700us
Per:IEC61000-4-5 |
|
Video Input Protection |
2KV (different mode),
4KV (common mode) , 10/700us
Per:IEC61000-4-5 |
|
Input Protection for Over Current |
Protection for Over 100mA Current |
|
Video Adjustments |
Adjustment |
4 Blue Adjusting Switches per Channel |
|
Adjusting Categories |
For Passive Balun
0-50m,50-250m,250-400m,400-500m,500-700m
For Active Balun
0-600m,150-750m,300-900m,450-1050m,600-1200m |
|
Indicators |
Power LED |
Red |
|
Signal LED |
Yellow |
|
Stability |
MTBF |
>20,000h |
|
Physical
Properties |
Dimensions(LWH) |
430*95*44.5 mm(1U) |
|
Housing Material |
Metal |
|
Unit Color |
Black |
|
Net Weight |
1520g |
|
Environmental |
Operating Temperature |
-20°C ~70°C |
|
Humidity(non-condensing) |
0~95% |
|
Storage Temperature |
-40°C ~150°C |
|
Casing |
Gross Weight |
2200g |
|
Casing Volume(LWH) |
530*150*90mm | | |
| |
|
|
|
|
