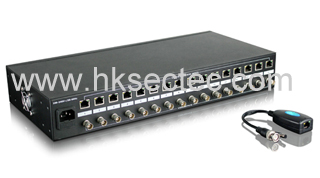

Description
Power supply input: 100V-240V AC; output: 36V 320W. Receive color video signal and supply
camera power from up to 300M/1000FT. Provide stably 12V1A power supply for remote
camera(working with ST-PV206-RM12). Each of 16 modules replacable, easy for maintenance.
Compatible with worldwide formats including PAL, NTSC,SECAM. Built-in surge & ESD protection.
Super interference Rejection.
|
Features |
|
·Power supply input: 100V-240V AC; output: 36V 320W.
·Receive color video signal and supply camera power from up to 300M/1000FT.
·Provide stably 12V1A power supply for remote camera (working with ST-PV206-RM12).
·Each of 16 modules replacable, easy for maintenance.
·Compatible with worldwide formats including PAL, NTSC,SECAM.
·Built-in surge & ESD protection.
·Super interference Rejection. |
|
Items |
ST-116PV-SV36 |
|
Power Properties |
Input Power Supply |
100-240V AC(50-60Hz) |
|
Output Power Supply |
320W 36V DC |
|
Connector |
Standard AC Jack |
|
Max Output Current |
8.8Amp |
|
Video
Transmission Properties |
Compatible with |
All Baseband Signals,
including PAL, NTSC, SECAM |
|
Signal Band |
250MHz(-3db) |
|
Balance Band |
0-6MHz |
|
Attenuation |
<1.5 dB |
|
Interference Rejection |
>60db |
|
Electric Fan Noise |
40 ~ 60 dBA |
|
Connection
Properties |
Video Output Connectors |
16* BNC-F; Impedance: 75Ω |
|
SECTEC Cable Connectors |
16* RJ-45; Impedance: 100Ω |
|
Protections |
Video Output Protection |
2KV(common mode),10/700us
IEC61000-4-5 |
|
Video Input Protection |
2KV (different mode),
4KV (common mode) , 10/700us
IEC61000-4-5 |
|
Indicators |
Power/state LED |
Yellow/Green |
|
Physical
Properties |
Dimensions(LWH) |
430*200*67mm(1.5U) |
|
Housing Material |
Metal |
|
Color |
Black |
|
N.W. |
3400g |
|
Environmental |
Operating Temperature |
0-55° |
|
Relative Humidity |
0~95%(non-condensing) |
|
Storage Temperature |
-20-70°C |
|
Accessories |
Standard Power Cable |
Length:1.2m |
|
Casing |
Gross Weight |
3020g |
|
Casing Volume(LWH) |
570*270*100mm |
| |
