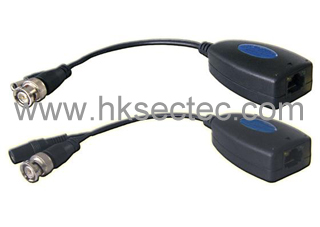

ST-PV206-2 is a transceiver that can transmit CCTV video and power. The product includes transmit

and receive ,use CAT 5/5e/6 SECTEC cable as transmission medium, can not only real-time transmit

1 channel color or monochrome video signal, also transmit DC to 300m, supply 12V DC power camera,

simplified project wiring. In practical project,need to used together with ST-101PV-RM12 . It features

long transmission distance, good transmission effect, super anti-interference, widely used in security

and teaching these complex system environment.



·Power: supply 12V DC to remote camera, simplified project wiring;
·Properties: real-time transmit 1 channel CCTV video signal and 12V DC power;
·Distance: used in pair, transmission distance max up to 300m;
·Safety: anti-interference, super lighting protection and ESD, and transient surge protection；
·Design: with extend cable, easy to connect DVR，RJ45、BNC、DC;
Installation: use RJ45, project more easily.

Item

Specification

Properties

Transmission signal

Single channel

Transmission distance

300m（output voltage 36V）

Video transmission properties and port

Coaxial video interface

BNC-M

Twisted pair transmission interface

RJ45

Formats compatible

PAL、NTSC、SECAM

Signal bandwidth

0-6MHz

Anti-interference

>60db

Electromagnetic environment compatibility

Interface Protection

2KV 10/700us
Per：IEC61000-4-5

ESD

1a contact discharge electricity level 3
1b air discharge electricity level 3
Per：IEC61000-4-2

Environmental

Operating Temperature

0-50℃

Storage Temperature

-20-70℃

Humidity(non-condensing）

0-95%

Physical Properties

Size(L*W*H)

65mm*36mm*22mm（without extend cable and interface）
Extend cable and interface length:14cm

Shell

ABS

Color

Black

N.W.

42g

Reliable

MTBF

>20000H
