Description

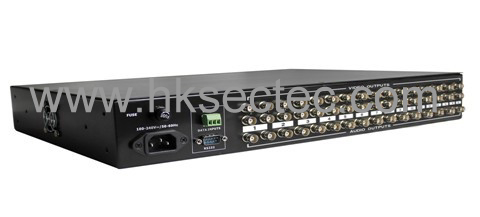

ST-VPAD116 is a transceiver hub that allows transmit CCTV video、audio、data and DC
power over single network cable at the same time. The device uses single Cat5/5e/6 cable as
transmission medium and work together with ST-VPAD206-RM, it can realtime transmit 16-ch PAL,NTSC,
SECAM color or monochrome video signals、16-ch mono monitor audio、16-ch RS485 or RS232 signals
up to 300m, and provide 12V DC power to each camera,simplified the project wiring. In practical project,
it need to used in pair,it is featured with long transmission distance,high performance transmission,
super anti-interference and etc.,professional application in video security monitoring project.
Features
Power supply: Using 400W（36V/11.2A）high power DC power;
Main function: Transmit 16-CH video 、mono audio 、data and 12V DC power over single Cat5/5e/6 SECTEC cable;
Transmission distance: 0～300M(12V DC output);
Safety performance: Anti-interference 、super surge protection 、anti-static protection、transient shock protection;
Appearance design: High hardness antirust iron shell, sophisticated technology, solid and durable ,RJ45、
BNC connector convenience and good in sight.
Specification
|
Item |
Parameter |
|
function |
transmission signal channel |
16-channel (video,audio,data,DC power) |
|
distance |
0～300m（12V DC output） |
|
Power |
max power |
400W |
|
Output power |
36V DC |
|
Max transmission rate |
36VDC/1A each channel |
|
video transmission performance and connector |
Coaxial video connector |
female BNC connector（dual output） |
|
compatible video format |
PAL、NTSC、SECAM video format |
|
signal transmission bandwith |
0～6MHz |
|
anti-interference |
>60dB |
|
SECTEC cable connector |
RJ45 connector |
|
audio transmission performance and connector |
connector |
Female BNC Connector |
|
bandwith |
20～20kHz |
|
Isolation and withstand voltage |
>500V |
|
data control signal
performance and connector |
connector |
screw push terminal |
|
signal category |
RS232/RS485 |
|
transmission rate |
<500kbps |
|
protection level |
Connector protection |
2KV per：IEC61000-4-5 |
|
ESD |
1a contact discharge level 3
1b air discharge level 3
per：IEC61000-4-2 |
|
operation environment |
operation temperature |
0～55℃ |
|
storage temperature |
-20～70℃ |
|
humidity（non-condensing） |
0～95% |
|
physical properties |
dimension(L*W*H) |
430mm×300mm×66.8mm |
|
shell |
Iron Material |
|
color |
black |
|
N.W. |
4.7kg |
|
stability |
MTBF |
>20000h | |
