Features

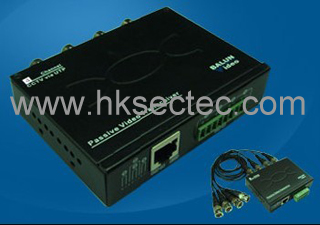

4 Channel Passive Video Transceiver (small and compact)
Full-motion color video signal up to 1300ft(400m) and monochrome(B& W) up to
1950ft (600m) via UTP cat5e/6 (match with passive one)
NTSC,PAL& SECAM video format compatible
Real-time transmission
No power required
RJ45 and detachable terminal blocks for UTP cat5e/6
Female BNC connector
Exceptional interference rejection
Built-in TVS(Transient Voltage Suppressors)for surge protection
Lightning protection design Grade:Ⅲ
50 dB crosstalk and noise immunity
Compact size and easy installation
Rack,wall mountable and desk installation 4 rubber feet
Black galvanized housing
Applications
Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking securities,financial information display System
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals Airports and banks
School Campuses
|
Model |
ST-104B |
|
Product Name |
4 Channel Passive video transceiver |
|
Applied Devices |
CCTV camera,monitors,DVR,switchers,IP encoders,and other CCTV equipment |
|
Video |
Video Format |
NTSC,PAL,SECAM |
|
Operating Frequency |
DC to 5MHz |
|
Max Distance |
UTP category 5e(24AWG) color:1300ft(400m) B&W:1950ft(600m) |
|
Common-mode/Differential-mode rejection |
15KHz to 5MHz 60 dB typ |
|
Impedance |
Coax,female BNC 75Ωunbalanced |
|
Attenuation |
UTP,screw terminal block or RJ45 100Ωbalanced |
|
Wire type |
Network wiring |
One unshielded twisted pair(for each video signal) 24-16AWG (0.5-1.31mm) |
|
Category type |
2 or better |
|
Impedance |
100±20 ohms |
|
Dc loop resistance |
52 ohms per 1000ft(18 ohms per 100m) |
|
Differential capacitance |
19 pF/ft max (62 pF/m max) |
|
Power |
No external power required |
|
connector |
Video input/output |
Female BNC connector |
|
Video output/input |
Pluggable screw terminal block and RJ45 for UTP(select one connection) |
|
Protection |
Surge protection |
Renewable solid surge protection |
|
Antistatic |
Yes |
|
Video input |
2KV(common mode),10/700us IEC6100-4-5/1955(GB/T 1726,5-1999) |
|
Video output |
2KV(different mode),10/700us IEC6100-4-5/1955(GB/T 1726,5-1999) |
|
mechanical |
Dimensions(L*W*H) |
BNC connector&mounting bracket excluded |
|
100*72.5*23mm |
|
housing |
Galvanized |
|
Body color |
Black |
|
Net weight |
200g |
|
environmental |
Operating temperature |
-20℃～70℃ |
|
Relative humidity |
0-95%（non-condensing） |
|
Storage temperature |
-40℃～150℃ | |
