Overview

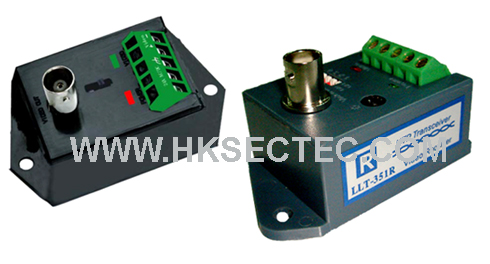

ST-352T is an active (amplified) transmitter and ST-352R is an active receiver that allows the transmission of

real-time CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable.



ST-352T/R is a compact unit. The power requirement is 12VDC. The pluggable screw terminal block of ST-352T/R

allows easy connection of UTP cable input. It receives one channel video signal from camera end via one UTP cable

at distance up to 1800M when used as a pair. The transmission distance reaches up to 3200ft(1000m) when

used with passive video transceiver. Its integrated 2 channel video distribution amplifier allows allows dual output

to display video at both monitor and DVR.



ST-352T/R has a single distance adjustment as well as built-in surge suppression to protect video equipment against

damaging voltage spikes. Its Integrated Ground Loop isolation prevents annoying "hum-bars" common with long

distance installations and its excellent crosstalk and noise immunity provides quality video up to the maximum distance.

The superior interference rejection and low emissions of the ST-352T/R allow video signals to co-exist in the same wire

bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.



Features
Single Channel Active Video Transmitter/Receiver
Full-motion color video signal up to 4900ft(1500m) via UTP cat5e/6/7
NTSC, PAL & SECAM video format compatible
Real-time transmission
12VDC power supply
brightness and sharpness is adjustable
Female BNC connector &terminal block
Pluggable screw terminal block or UTP
Exceptional interference rejection
70 dB crosstalk and noise immunity
Full ground-loop immunity
Built in TVS(Transient Voltage Suppressors) for surge protection
Lightning protection design Grade:V
Compact size and easy installation

Applications
Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals, Airports and bank
School Campuses
