>> CCTV accessories >> UTP Video Balun |
 |

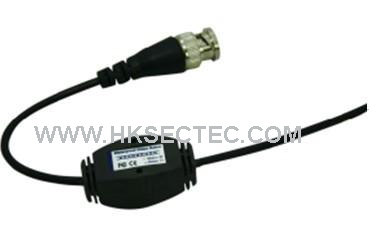

1ch passive waterproof video transceiver. Transmission distance up to 1200m if working with active receivers
|
|
| |
|
Features |
|
~1CH passive Video transceiver via UPT cable
~Waterproof level up to IP45
~Transmission:
Color: 400m. B/W: 500m. (Match with passive balun)
Color: 700-800m. B/W: 1000-1500m. (Match with active balun)
~Connectors:
BNC-M connector, push-terminal wire
~PCB board with Interference Rejection and Surge Protection
~ABS outer shell, mini size
|
|
Specification |
|
Items |
ST-VBW235 |
|
Video
Transmission Properties |
Compatible with |
PAL, NTSC, SECAM |
|
Transmitting Band |
0～6MHz（0.5db type） |
|
Interference Rejection |
>60dB |
|
Attenuation |
<1.5dB |
|
Distance |
Color: 400m. B/W: 500m(Passive)
Color: 700-800m. B/W: 1000-1500m(Active) |
|
Connection
Properties |
Video Connector |
1x BNC-M; Impedance:75Ω |
|
Cable Connector |
Impedance: 100Ω |
|
Video Input Protection
(as transmitter) |
2KV(common mode),10/700us
IEC61000-4-5/1955 |
|
Video Output Protection
(as transmitter) |
2KV(different mode),10/700us
IEC61000-4-5/1955 |
|
Physical
Properties |
shell |
ABS Engineering Plastic |
|
Color |
Black |
|
Length |
16.5mm |
|
Environmental |
Operating Temperature |
-20°C~70°C |
|
Relative Humidity |
0~95%(non-condensing) |
|
Storage Temperature |
-20°C-70°C |
|
Casing |
Gross Weight |
20g | | |
| |
|
|
|
|
