>> CCTV accessories >> UTP Video Balun |

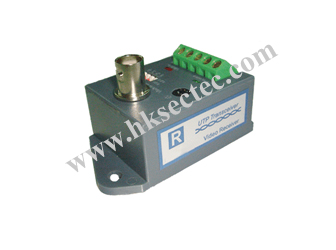

1ch active video transceiver, PAL/NSTC real-time video transmission, outstanding interference rejection...
|
|
| |
■ Product Introduction
Single Channel Active Video Transmitter;
Long Distance Transmission of PAL/NTSC Real-time Video;
Exceptional Interference Rejection;
Options for Distances: Three Levels;
Red Light for Power, Green Light for Video;
Built-in Surge Protection, Lighting Protection and Other Protection Setting;
Convenient Wiring, Higher Cable Utilization Rate and Lower Integrated Wiring Cost;
Compact Size.
■ Technique Parameter
|
Model |
ST-351R/T |
|
Spec |
1CH Active |
|
Video |
Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ |
|
Audio/data |
NO |
|
Power |
12VDC |
|
Impedance |
Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω |
|
Wire type |
One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m) |
|
Surge suppression |
6000V 1.2μ S*5μ S |
|
Control |
Brightness and Sharpness |
|
UTP Port |
RJ45 AND Terminal Block |
|
Dimensions(mm) |
78*38*36 |
|
Weigth(g) |
40 |
|
Environment |
Temperature:-10~+50℃ Humidity:0~95% | |
| |
|
|
|
|
