Detailed Product Description

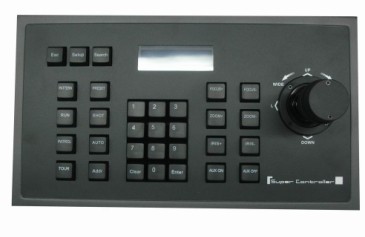

1. Professional controller, elegant design
2. LCD display
3. 3D rocker, easy to control
4. All parameters are set by key, fast and easy
5. Unique control code study function, allows customers to modify control code instructions.
6. Updating new program function on line.
7. One key to search current protocol and baud rate of control address.
8. Lightning proof and anti-disturb design
9. Communication standard can reach 1200m
10. Can connect 15 pcs sub-keyboard at most.
11. Support RS485/RS422 communication port.
12. Communication with good compatibility, build in kinds of protocol.
13. Password function for keyboard operation
|
Power Input |
DC12V±10%/50HZ |
|
Mode |
RS485 |
|
Control Protocol |
PELCO-D, PELCO-P etc |
|
Baud rate |
1200bps,2400bps,4800bps,9600bps,19200bps |
|
Control address |
1-255 |
|
Control |
Left /Right, Up/Down |
|
Iris: On/Off |
|
Focus: Far/Near |
|
Zoom: Tele/Wide |
|
Set and call preset point, tracks scan, Pattern, Horizontal auto scan, home place |
|
Interface mode |
5 PIN |
|
Working Temperature |
-10°~50° |
|
Ambient humidity |
≤90%RH Without condensation |
|
Package Dimension |
425mm*265mm*170mm |
|
