>> CCTV accessories >> Intellegent keyboard |
323C is 3D control keyboard, maximum drive capacity of 32 loads, RS485 control, control distance of up to 1200m...
|
|
| |
■ Product Introduction
323C/322C intellegent control keyboard is for PTZ dome cameras. 323C is 3D rocker design and 322C with 2D rocker design. Maximum drive capacity of 32 loads, RS485 control, control distance of up to 1200m, variable speed control joystick, control PTZ, lens, Can control a variety model of Image processor, integrated multi-protocol, baud rate adjustable
■ Technique Parameter
|
Model |
ST-322C |
ST-323C |
|
Supply voltage |
DC9V |
|
Power |
3W |
|
Protocol |
RS485/RS422 |
|
Standard rate |
1200--9600bps(Optional) |
|
Keyboard button |
Long life conductive plastic |
|
Rocker |
Two-dimensional variable-speed rocker |
Three-dimensional variable-speed rocker |
|
Weight |
1.075kg |
1.1kg |
|

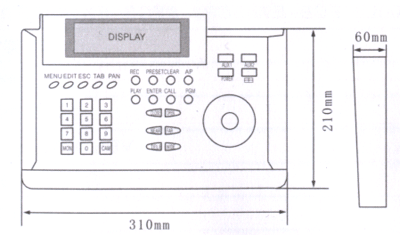

Dimension |
310(L)*210(W)*60(H)mm |
 |
| |
|
|
|
|
