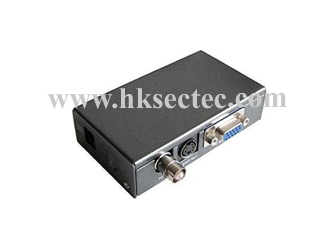

BNC to VGA converter, 1ch BCN input, 1ch S-video input, 1ch VGA input...
|
|
| |
■ Product Introduction
Inputs: 1 X Composite Video, 1 X S-Video, 1 X VGA;
Output: 1 X VGA;
Composite Video Interface: BNC (The model with RCA input is: FLY7503M and FLY7503W)
Switch between the 3 inputs and output one of them to VGA;
The VGA input is pass through to the VGA output without any processing;
Both PAL / NTSC are supported;
Optional Resolution: 800 X 600@60HZ, 800 X 600@75HZ, 1024 X 768@60HZ, 1280 X 1024@60HZ, (Note: The model supports higher resolution is FLY7503W & FLY7503W-BNC)
Brightness, hue, contrast, saturation, color, are adjustable and auto-save when power off;
Optional function: Remote Control.
■ Technique Parameter
|
Item |
Spec. |
|
(1)VGA Out |
To connect VGA display (Computer monitor or LCD) |
|
(2)Video In |
To connect Composite Video devices (eg:DVR, CDD Camera, etc) |
|
(3)S-Video In |
To connect S-video devices |
|
(4)VGA In |
To connect PC host |
|
(5)DC 5V |
To connect power supply |
|
(6)LED Indication |
Shows working staus. |
|
Item |
Spec. |
|
(1)Input: |
Switch between input sources Composite Video>>S-VIDEO>>VGA |
|
(2)Menu |
Click it to adjust lightness, contrast, saturation and hue |
|
(3)Freeze/+
(4)Resolution/- |
-Under BRI Menu, "Freeze/+": increase value of lightness; "Resolution/-" : decrease value of lightness.
-Under "CON" Menu, " Freeze/+" : increase value of contrast; "Resolution/-" : decrease value of contrast
-Under "COL" Menu, " Freeze/+" : increase value of saturation, "Resolution/-" : decrease value of saturation
-Under "HUE" Menu, " Freeze/+" : increase value of hue; "Resolution/-" : decrease value of hue
-When menu is closed, Press : " Freeze/+" to freeze output display video;
-When menu is closed: Press: " Resolution/-" to select output resolution;
Press "Input" and "Resolution/-" at the same time: Default Setting. |

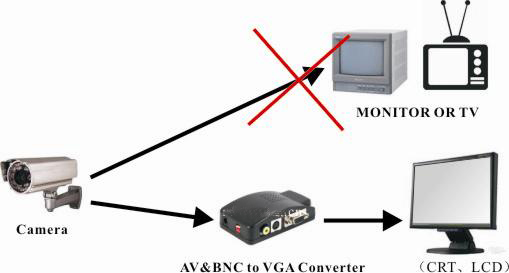

■ Connection picture
|
| |
|
|
|
|
