>> CCTV accessories >> IR illuminator |
 |

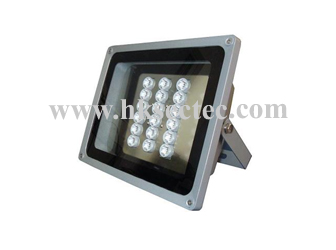

320m IR night vision, 18pcs 2w high power LED, 15°/30°/45°/60°/90° view angle, AC110-220V/AC24V/DC12V, 44W, IP65...
|
|
| |
■ Features
Accurate constant circuit drive develops excellent performance of LED
Using high power LED, high efficacy and long service life
Improve performance of camera to get better pictures at night time
Fill Light for night vision camera
Indoor/Our door use
Easy installation
■ Specification
Quantity of LED 18PCS 2W High Power LED
Wavelength 850nm
Bean Angle 15°/30°/45°/60°/90°
Viewing Distance 320~80m
Power Factor >0.95
Day/night Switch Auto
Working Voltage AC110-220V/AC24V/DC12V
Power consumption 44W
Wire If 12VDC/24VAC:45cm(1.4 ft.)
Plug AC110-220V (standard), other voltage optional
Panel Tempered glass panel
Housing Aluminum Die Casting Housing
Bracket Mount bracket
Working temperature -20°C TO +50°C (-50°C TO +50°C with heater)
Protection Level IP65
Color Gray
N.W 3.3KG
G.W 3.75KG
Dimension 285*235*155mm
Packing Dimension 350*300*195mm
|
Model |
Beanm Angl |
Distance |
Number of IR LED |
|
ST-F18/R15AG |
15° |
320m |
18PCS 2W High Power LED |
|
ST- F18/R30AG |
30° |
240m |
18PCS 2W High Power LED |
|
ST- F18/R45AG |
45° |
160m |
18PCS 2W High Power LED |
|
ST- F18/R60AG |
60° |
120m |
18PCS 2W High Power LED |
|
ST- F18/R90AG |
90° |
80m |
18PCS 2W High Power LED | |
| |
|
|
|
|
