Product Overview

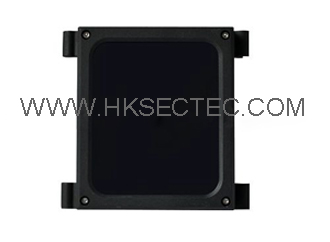

ST-2001-IR Digital LED Strobe Light is a super power and smart performance digital pulse strobe
light for ANPR (Auto Number Plate Recognition) system. Its widely apply into traffic crossing, urban
road and high way for capture number plate and speed measurement. Complied with our latest
professional strobe control circuit, it has rapidly relighting, long service life and accurate control
of the strobe time, brightness and evenly high instantaneous power output. Through precision
adjustment control software to synchronize camera and obtain clearly pictures under any kinds of
environment without the influence of drivers eye.
Produce Feature
1. Accurate set up of strobe duration
2. Instant / delay trigger: delay trigger can be set up accurately
3. Evenly high power light output in transient
4.Support high power sequence flashing in one second
5. Rapidly relighting, assure sequence flashing rapidly
6. 850nm infrared wavelength, no influence of drivers eye
7. All data can be setted up through RS485 port on PC without losing when power down, such as
strobe duration and brightness, trigger delay.
8. Suit for multiple ambient light efficacy request through different setting
9. Low heating, long life span, the brightness is several times more than common led strobe light
Specification
Model：ST-2001-IR
Main Processor: ATMEL AVR series high performance MCU
User Interface: RS485 port
LED: high power IR 850nm LED
Beam Angle: 15°, 30°, 45° (optional)
D/N：environmental brightness detection
Syn. Port: strobe trigger input
RS485 Port: connect with PC or camera
Parameter Setting：internal setting of strobe duration, brightness etc.
Power Supply：AC85-265V
Stroboflash Power Consumption: Default: 12W
Critical strobe Power Consumption：<45WActual power is relevant to setting
Strobe Duration：1ms～20ms(Unit：ms)
Trigger Delay：0ms～20ms(Unit：ms)
Trigger Method：electrical level、switching value、RS485 order
Protection level：IP66
Working temperature：-25～+80℃
Storage temperature：-40～+85℃
N.W： 2kg
Dimension: 170*213*124mm |
