PRODUCT FEATURE
Accurate constant driver circuit develops excellent performance of LED;
Dot matrix super power LED brings high efficacy, low light decay and long service life;
More energy saving by power factor correction, PF: 0.9-0.98;
IP66 waterproof and -40℃ to +55℃ working temperature;
TECHNICAL SPECIFICATION

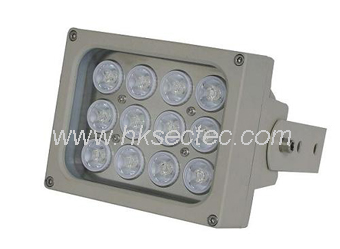

LED type: 12pcs 2W dot-matrix IR LED
Wavelength: 740nm/850nm/940nm
Beam Angle: 15°-90°
Beam Distance: 240m-110m
Bracket: Wall mount bracket
Working Voltage: AC85-265V/DC12-24V/AC24V
Power Consumption: 28W
Day/Night Switch: Auto
Working Temperature: -40℃ to +55℃
Protection Level: IP66
Color: Beige
Panel: Tempered glass panel
Housing: Aluminum Die Casting Housing
N.W/G.W: 1.4KG/1.7KG
Dimension: 135*110*91mm
Packing Dimension: 180*190*135mm
Warranty: 2years
Model Beam Angle Viewing distance(850nm)
ST-12D-15-IR 15° 240m
ST-12D-30-IR 30° 210m
ST-12D-45-IR 45° 180m
ST-12D-60-IR 60° 150m
ST-12D-60-IR 90° 110m
Viewing distance is tested by Watec/WAT-902H 1/3" CCD Camera.
To achieve the distance needed, please pay attention to your camera
specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens. |
