Description
Accurate constant circuit drive develops excellent performance of LED
Using high power LED, high efficacy and long service life
Improve performance of camera to get better pictures at night time

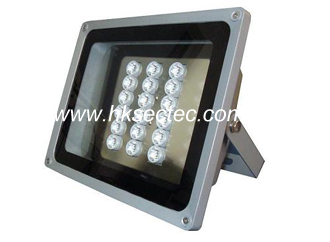

Fill Light for night vision camera
Indoor/Our door use
Easy installation



Specification
Quantity of LED                       18PCS 2W High Power IR LED
Wavelength                             850nm
Bean Angle                              15°/30°/45°/60°/90°
Viewing Distance                     320~80m
Power Factor                           0.9-0.98
Day/night Switch                      Auto
Working Voltage                      AC110-220V/AC24V/DC12V
Power consumption                 44W
Wire                                        If 12VDC/24VAC:45cm(1.4 ft.)
Plug                                         AC110-220V  (standard), other voltage optional
Panel                                       Tempered glass panel
Housing                                   Aluminum Die Casting Housing
Bracket                                    Mount bracket
Working temperature             -40°C TO +50°C
Protection Level                      IP65
Color                                       Gray
N.W                                         3.3KG
G.W                                         3.75KG
Dimension                               285*235*155mm
Packing Dimension                  350*300*195mm

Model                         Beam Angle               Viewing distance(850nm)
ST-L18N-15-IR                15°                             320m
ST-L18N-30-IR                30°                             240m
ST-L18N-45-IR                45°                             160m
ST-L18N-60-IR                60°                             120m
ST-L18N-90-IR                90°                              80m



Viewing distance is tested by Watec/WAT-902H 1/3" CCD Camera.

To achieve the distance needed, please pay attention to your camera specification

and lens before purchase. It is normal phenomenon that distance may vary due to
