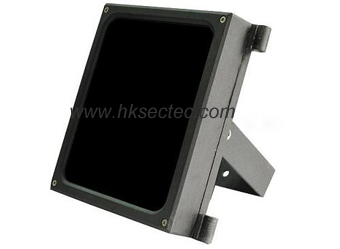

ST-H301-IR-L WisdomEyeTM Intelligent Infrared
• Adopt WisdomEyeTM Intelligent Infrared Technology, using the photocell to dim IR light, disperse and focus the light automatically. There is no blind area at less background light or over exposure of foreground at indoor or outdoor environment.
• Deliver a constant brightness of IR light, intelligent control the output of LED, improving performance of the product and prolonging the lifetime of LED.
• It has the advantages of small size, safe and inconspicuous.
• Improve the performance of the weak light camera, thereby
• Enhancing the picture effects at night.
• Also a regulated low power input circuit which allows the illuminator to be powered directly by an AC110-240V electric source.
• IP66 waterproof Aluminum Die Casting Housing, good heat dissipation, available to prevent salt corrosion. It can install at seaport or ship board. A variable angle “U” bracket is easy and quick to mounting.
• Recommended for military and surveillance, perimeter surveillance, airports and prisons, ports and harbors, as well as residential, commercial and public centre surveillance.
There is a photocell of brightness of infrared light and unique intelligent control circuit in ST-H301 IR Illuminator. When the camera is watching at short distance with the intelligent IR Illuminator and the reflected infrared light is very strong which makes exposure in the picture of screen, the photocell will intelligently decrease the power of the illuminator. In this case the infrared light becomes soft and uniform irradiation and no exposure of the screen at all. When the camera is watching at long distance, the reflected infrared light is weak, the intelligent circuit will enhance the power of illuminator automatically improving the brightness of infrared light to stronger and longer. The screen is clearer than before. So there is no blind area at less background light or over exposure of foreground at indoor or outdoor environment.
TECHNICAL SPECIFICATION
LED type: dot-matrix High Power IR LED
Wavelength: 850nm/940nm
Power Factor: 0.9-0.98
Voltage: AC85-265V
Power consumption: 37W
Day and night functionality: Automatic
Power supply: AC85-240V/AC24V/DC12V
Mounting: Wall mounting ‘U’ bracket
Temperature: -40℃ to 55℃
Grade of Protection: IP66
Color: Black
Shield: Aluminum Die Casting Housing
Panel: high light transmittance toughened glass
Net weight: 4.3kg
Gross weight: 4.8kg
Warranty: 3years
Model Beam Angle Wavelength Distance
ST-H301-30-A-IR-L 30° 850nm 150m
ST-H301-45-A-IR-L 45° 850nm 100m
ST-H301-60-A-IR-L 60° 850nm 70m
ST-H301-90-A-IR-L 90° 850nm 60m
ST-H301-120-A-IR-L 120° 850nm 50m
Viewing distance is tested by SONY 1/3" CCD Camera.
To achieve the distance needed, please pay attention to your camera specification
and lens before purchase. It is normal phenomenon that distance may vary due to
different cameras and lens. |
