PRODUCT FEATURE
Accurate constant driver circuit develops excellent performance of LED;
Dot matrix super power LED brings high efficacy, low light decay and long service life;
More energy saving by power factor correction, PF: 0.9-0.98;
IP66 waterproof and -40℃ to +55℃ working temperature;
TECHNICAL SPECIFICATION

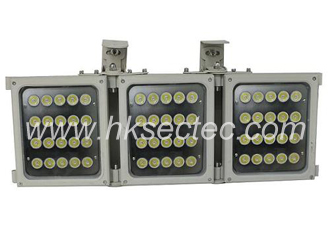

LED Type: 60pcs 3W dot-matrix white light LED
Luminous Flux:9800lm
Color temperature: 3000-3500K/6500-7000K
Beam Angle: 15°-90°
Beam Distance: 380m-160m
Bracket: Wall mount bracket
Working Voltage: AC85-265V/DC12-24V/AC24V
Power Consumption: 138W
Day/Night Switch: Auto
Working Temperature: -40℃ to +55℃
Protection Level: IP66
Color: Beige
Panel: Tempered glass panel
Housing: Aluminum Die Casting Housing
N.W/G.W: 12KG/13KG
Dimension: 615*210*146mm
Packing Dimension: 720*400*220mm
Warranty: 2years
Model Beam Angle Viewing distance
ST-S203D-15-W 15° 380m-240m
ST-S203D-30-W 30° 340m-210m
ST-S203D-45-W 45° 280m-170m
ST-S203D-60-W 60° 220m-140m
ST-S203D-90-W 90° 160m-110m
Viewing distance is tested by Sony 1/3 CCD Camera with 0.01LUX.
To achieve the distance needed, please pay attention to your camera specification
and lens before purchase. It is normal phenomenon that distance may vary due to
different cameras and lens. |
