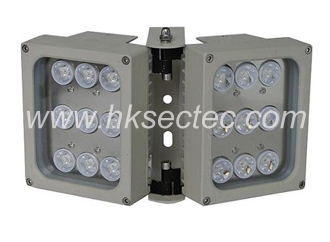

PRODUCT FEATURE
Accurate constant driver circuit develops excellent performance of LED;
Dot matrix super power LED brings high efficacy, low light decay and long service life;
More energy saving by power factor correction, PF: 0.9-0.98;
IP66 waterproof and -40℃ to +55℃ working temperature;
TECHNICAL SPECIFICATION
LED Type: 18pcs 3W dot-matrix white light LED
Luminous Flux:3600lm
Color temperature: 3000-3500K/6500-7000K
Beam Angle: 15°-90°
Beam Distance: 200m-70m
Bracket: Wall mount bracket
Working Voltage: AC85-265V/DC12-24V/AC24V
Power Consumption: 40W
Day/Night Switch: Auto
Working Temperature: -40℃ to +55℃
Protection Level: IP66
Color: Beige
Panel: Tempered glass panel
Housing: Aluminum Die Casting Housing
N.W/G.W: 2.6KG/3.0KG
Dimension: 137*212*91mm
Packing Dimension: 180*190*135mm*2
Warranty: 2years
Model Beam Angle Viewing distance
ST-S092D-15-W 15° 200m-150m
ST-S092D-30-W 30° 160m-120m
ST-S092D-45-W 45° 120m-90m
ST-S092D-60-W 60° 100m-65m
ST-S092D-90-W 90° 70m-50m
Viewing distance is tested by Sony 1/3 CCD Camera with 0.01LUX.
To achieve the distance needed, please pay attention to your camera specification
and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens. |
