Description

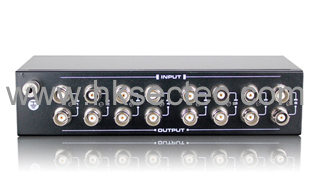

ST-SV308 is a 8-ch video surge protector device designed according to the standard of GB/T18802.21-2004/IEC61643-21:200. The device’s nominal operating voltage is 5V, max continuous operating voltage is 6V, limiting voltage lower than 20V. It features multi-level protection、high capacity for through-flow、low limiting voltage、quick reaction time、less insertion loss. It adapts to overvoltage protection for security video signal and power, protecting the device from the damage of induced overvoltage, switching overvoltage and static discharge. It’s widely used in security monitoring system, environment monitoring system.
Features
1. Standard: GB/T18802.21-2004/IEC61643-21:2000;
2. Protection: Baseband composite video signal(Bandwidth more than 10MHz);
3. Features: Multifunction multilevel overvoltage protection, large max discharge current, low limiting voltage, quick reacting time, low insertion loss;

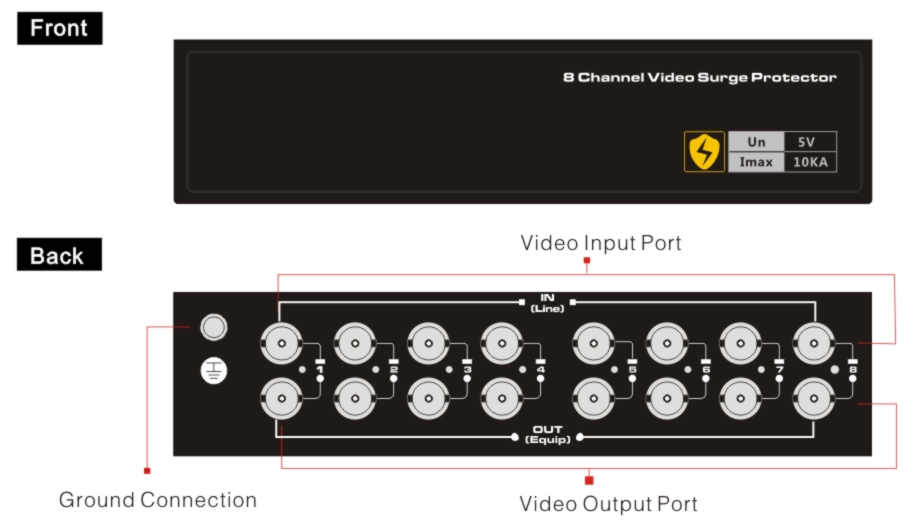

4. Grounding: Tool-free, Screw grounding;

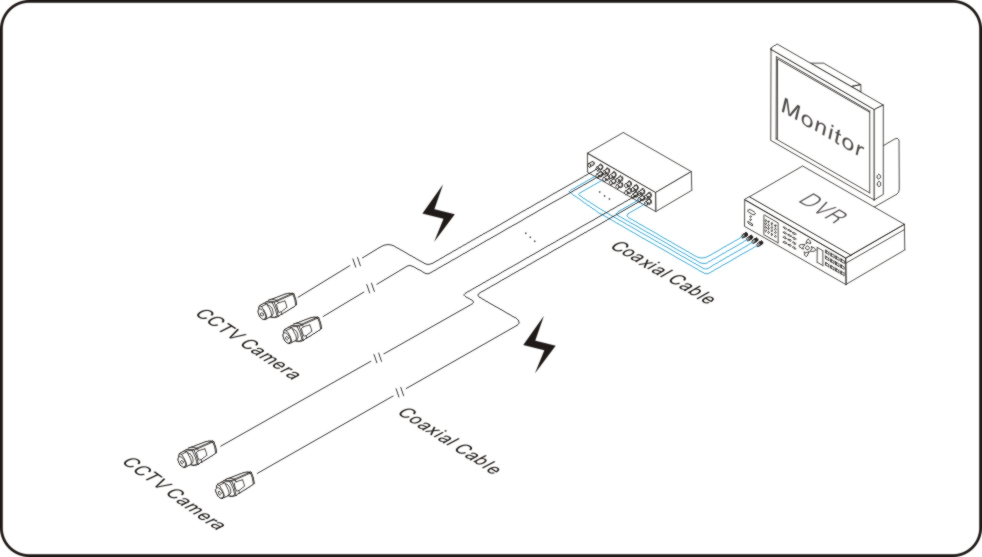

5. Structure: Support tablet installation, wall-mounted installation, easy installation;
Specification
|
Item |
Description |
|
Video |
Video channel |
8-ch |
|
Rated operating voltage |
5V |
|
Max continuous operating voltage |
6V |
|
Nominal discharge current（8/20µs） |
5KA |
|
Max discharge current（8/20µs） |
10KA |
|
Impulse limiting voltage（10/700µs） |
<20V |
|
Insulating resistance |
≥0.4MΩ |
|
Inserting loss |
≤0.5dB |
|
Standing-wave ratio |
≤1.2 |
|
Signal bandwidth |
10MHz |
|
Reacting time |
≤1ns |
|
Environment |
Working temperature |
-20～55℃ |
|
Storage temperature |
-40～70℃ |
|
Humidity(Non-condense) |
0～95% |
|
Structure |
N.W. |
640g |
|
Size |
190mm×96mm×44.5mm |
|
Shell |
Iron |
|
Stability |
(MTBF |
>30000hrs |
|
