Safety precautions:
a) When the SPD box is installed in final system, it must achieve all the requirements of GB4943 (EN60950, IEC60950) standard;
b) The equipment has to be installed by authorized professional person, before installation, to cut off power supply, and prohibit hot-line work from accidents
Specification
|

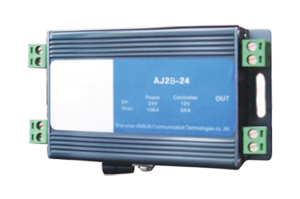

Product model |
AJ2B-24 |
|
1. power SPD specification |
|
Max continuous working voltage (Uc) |
24V AC |
|
Nominal discharge current (In) |
10KA |
|
Max discharge current (In) |
20KA |
|
Protection level |
≤100V |
|
2. Control SPD specification |
|
|
PTZ control |
|
Max continuous working voltage (Uc) |
12 |
|
Nominal discharge current (In) |
5KA |
|
Max discharge current (In) |
10KA |
|
Protection level |
≤25V(core wire—case/ground) |
|
Data transmission rate |
≤100Mbps |
|
Impedance |
75Ω |
|
Insertion loss |
≤0.5dB |
|
Interface type |
2P terminal |
|
3. other specification |
|
Case |
Aluminum material, oxidation surface(black, silver) |
|
Dimension |
110*61*28mm (including interface) |
|
Wire interface |
Power supply |
Compression joint port, suitable for 16-26AWG(0.15-1.3mm²) wire |
|
Control signal |
|
Ground |
Earth wire terminal or 2.5mm²earth wire |
|
Installation |
Inside of box or cabinet |
|
Working conditions |
Temperature:－40～＋85℃； Relative humidity:≤95％(25℃); Elevation≤3km |
Installation and wiring
1) According to protection demands, the SPD is connected by series between protected devices and signal path, the closer the distance to protected devices, the better the protection effect.
2) To connect separately a）the cable to the input terminal of power, video and control port, b) output terminal of SPD power, video and control to related interface of protected devices, c) ground line of SPD to earth wire of lightning protection system
3) After wiring, please check it until everything is going well, to put into operation.
Product maintenance
1) The product does not need to be maintained specially, but to inspect at fixed period, especially before and during thunderstorm season.
2) Once there is a failure during system operation, please remove the SPD device at first, if the system can operate normally, the device is broken |
