Feature
1) Camera power + video cable (power + control or power + network) multi stage protective circuit
2) International famous core component brand
3) High discharge current capacity, low insertion loss, superior transmission performance, no leakage current
4) Low residual voltage, perfect protective effect
5) Quick response, stable performance, reliable working
6) Small size, easy installation
Specification
|

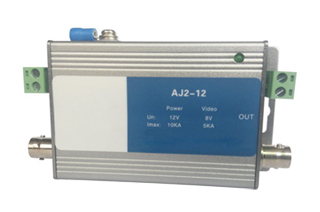

Product model |
AJ2-12 |
|
1. power SPD specification |
|
Max continuous working voltage (Uc) |
12V DC |
|
Nominal discharge current (In) |
5KA |
|
Max discharge current (In) |
10KA |
|
Protection level |
≤100V |
|
2. signal SPD specification |
|
|
Video |
|
Max continuous working voltage (Uc) |
12V |
|
Nominal discharge current (In) |
5KA |
|
Max discharge current (In) |
10KA |
|
Protection level |
≤25V(core wire—case/ground) |
|
Data transmission rate |
≤100Mbps |
|
Impedance |
75Ω |
|
Insertion loss |
≤0.5dB |
|
Interface type |
BNC-K/J |
|
3. other specification |
|
Case |
Aluminum material, oxidation surface(black, silver) |
|
Dimension |
112*40*25mm |
|
Wire interface |
Power supply |
Compression joint port, suitable for 16-26AWG(0.15-1.3mm²) wire |
|
Video signal |
BNC connector |
|
Ground |
Earth wire terminal or 2.5mm²earth wire |
|
Installation |
Inside of box or cabinet |
|
Working conditions |
Temperature:－40～＋85℃； Relative humidity:≤95％(25℃); Elevation≤3km |
Installation and wiring
1) According to protection demands, the SPD is connected by series between protected devices and signal path, the closer the distance to protected devices, the better the protection effect.
2) To connect separately a）the cable to the input terminal of power, video and control port, b) output terminal of SPD power, video and control to related interface of protected devices, c) ground line of SPD to earth wire of lightning protection system
3) After wiring, please check it until everything is going well, to put into operation.
Product maintenance
1) The product does not need to be maintained specially, but to inspect at fixed period, especially before and during thunderstorm season.
2) Once there is a failure during system operation, please remove the SPD device at first, if the system can operate normally, the device is broken |
