Overview
•3U 19" Standard industry box
•Support local video input such as CVBS/VGA/DVI/HDMI/HD-SDI
•Support network video input such as IPC/DVR/NVR, etc.
•Support 9ch@DVI output ports, support split, merge, splice, roam
•Support control of external D1, VGA & DVI video matrix
•Support 10M/100M/1000M for network video decoding & video-wall control
Features
Hardware Structure

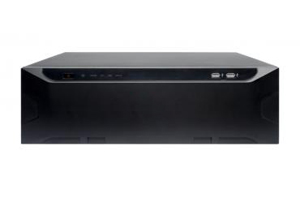

>3U 19’’ Standard industry box
>Support up to 9 video-wall display units, support configuration of 2×2, 2×3, 2×4, 3×3
>Hot-swappable function cards, easy for maintenance
Video Input
>Local Video: Support CVBS/VGA/DVI/HDMI/HD-SDI input
>Network Video: IPC/DVR/NVR, etc.
Video Output
>9ch@DVI, support split, merge, splice, roam
Matrix Switch
>Support control of external D1, VGA & DVI video matrix
>Lossless switching with time delay less than 40ms
>Multiple switch control modes : network keyboard, web client &iPad
Network & Control
>Support 10M/100M/1000M for network video decoding & video-wall control
>Support control for matrix, video-wall, dome camera with RS485 & RS232, support mainstream manufacturers’ protocol
>Support ONVIF/PSIA/GB28181/DB33/DB41/RTP/RTSP, support mainstream manufacturers’ IPC/DVR/NVR such as Honeywell/Tyco/Pelco/Sony/Panasonic/Axis/Dahua/Hikvision/Uniview
>Support user authority management
Technical Specifications
|
Model |
M30 |
|
System Parameter |
|
Main Processor |
TI high performance processor, incorporates ARM core, DSP & hardware video processing accelerating unit |
|
Operating System |
Embedded OS |
|
Bus |
High-performance serial bus |
|
Slot |
2 function card slots |
|
System Configuration |
|
Mainframe |
2 Power supply, main control card, high-performance serial bus backplane, smart temperature controlled fan |
|
Video Input Card |
2 max |
|
Case |
|
DH-M30 (Mainframe) |
3U standard 19”, 2 slots |
|

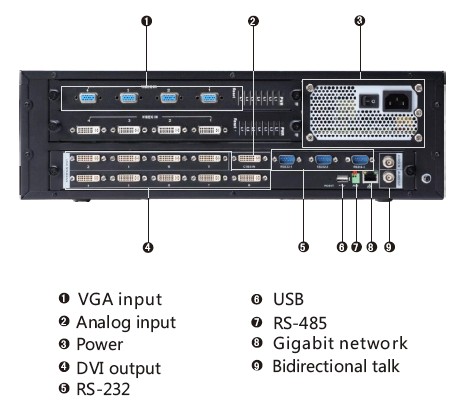

Main Control Interface |
|
Network |
1×RJ45, 10M/100M/1000M |
|
Serial |
3×RS232, for matrix, LCD display, mid-control
2×RS485, for PTZ |
|
USB |
1×USB2.0 |
|
Video Input (Standard Configuration） |
|
Video |
Interface |
16@BNC (1.0VP-P, Impedance75Ω) |
|
Format |
PAL/NTSC self-adaptable |
|
VGA |
Interface |
DVI/VGA |
|
Format |
Max input resolution : 1920×1080@60Hz |
|
Network Video |
Interface |
RJ45 |
|
Format |
1080P/UXGA/720P/960H/D1/2CIF/CIF
Support 9@1080P network video decoding at the same time |
|
Video-wall Merge Control |
|
Splicing |
Function |
Splice, Zoom, Overlay, Roam, etc. |
|
Video Source |
HD & SD, Digital & Analog in any combination |
|
Output Interface |
9-ch DVI-I |
|
Control Mode |
PC client-end, Network keyboard, iPad |
|
Working Environment & other Physical Parameter |
|
Power Supply |
AC Power :100~120V AC, 200~240V AC |
|
Power Consumption |
≤80W |
|
Temperature |
0℃~＋50℃ |
|
Working Humidity |
10%－90% 86kpa－106kpa |
|
Dimension（mm） |
3U standard 19”, 482.6(width)×496(depth)×133(height) |
|
Weight |
≤10Kg (full configuration) |  |
