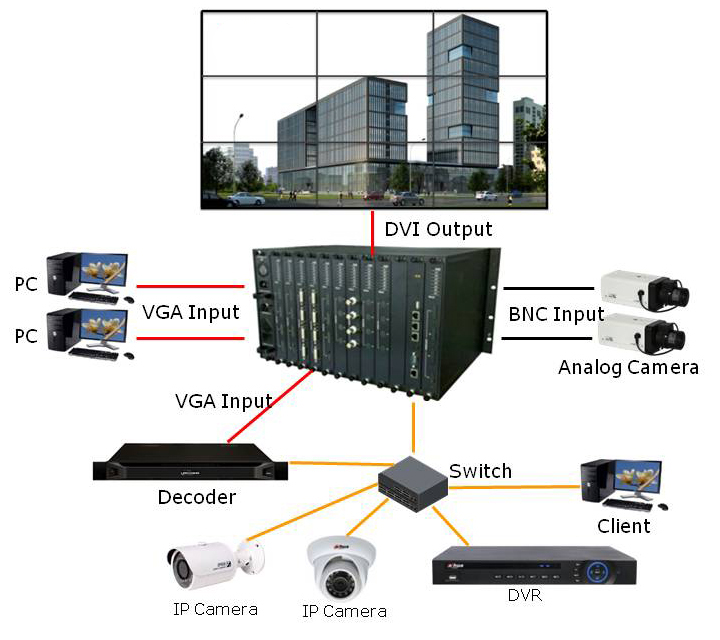

Features
>Hardware Structure
>6U 19’’ Standard industry box
>Card-Pluggable module design, easily configured according to demands
>Hot-swappable function cards, easy for maintenance
>Redundant power supply, high reliability
Video Output
>16ch@DVI/VGA HD signal, support split, splice, roam, etc.
Matrix Switch
>Support analog & digital video input and matrix output
>Support matrix switching and output for SD & HD video
>Lossless switching with time delay less than 40ms
>Multiple control modes : network keyboard, web client & iPad
Network & Control
>Support 10M/100M/1000M for video-wall control
>Support control for matrix, video-wall, dome camera with RS485 & RS232, support mainstream manufacturers’ protocol
>Support user authority management
Technical Specifications
|
Model |
DSCON2000 |
|
System Parameter |
|
Main Processor |
32-bit embedded processor, incorporates hardware video processing accelerating unit |
|
Operating System |
Embedded OS |
|
Bus |
High-performance serial bus |
|
Slot |
12 slots(1 for main control card, 11 for function card) |
|
System Configuration |
|
Mainframe |
2 Power supply, main control card, high-performance serial bus backplane, smart temperature controlled fan |
|
Video Input Card |
6 max |
|
Video Output Card |
4 max |
|
Case |
|

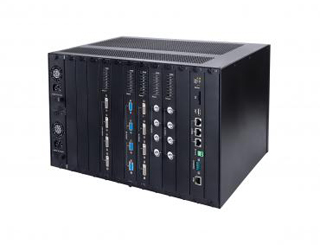

DH-DSCON2000
（mainframe） |
6U standard 19”, 12 slots |
|
Main Control Interface |
|
Network |
1×RJ45, 10M/100M/1000M |
|
Serial |
4×RS232, for matrix, LCD display, mid-control
1×RS485, for PTZ |
|
USB |
1×USB2.0 |
|
SD Card |
1, support high-speed SD write/read standard |
|
Video Input（Optional） |
|
Analog(BNC) |
Interface |
4ch BNC (1.0VP-P, Impedance75Ω) |
|
Format |
PAL/NTSC self-adaptable |
|
VGA |
Interface |
DB15 |
|
Format |
Support VESA 2.0 standard, video resolution of 1024×768@60Hz, 1280×1024@60Hz, 1400×1050@60Hz, 1600×1200@60Hz, 2048×1536@30Hz and other user-defined resolution |
|
DVI |
Interface |
DVI-D, support HDMI with converters |
|
Format |
Support DVI 1.0 & HDMI 1.3 standard, support 12-bit HDMI signal, support xvYCC color standard signal, input video resolution supports 1024×768@60Hz, 1280×1024@60Hz, 1400×1050@60Hz, 1600×1200@60Hz, 720p, 1080p and other user-defined resolution |
|
HDMI |
Interface |
HDMI |
|
Format |
Support DVI 1.0 & HDMI 1.3 standard, support 12-bit HDMI signal, support xvYCC color standard signal, input video resolution supports 1024×768@60Hz, 1280×1024@60Hz, 1400×1050@60Hz, 1600×1200@60Hz, 720p, 1080p and other user-defined resolution |
|
Video Output |
|
DVI output |
Interface |
4ch DVI-I |
|
Format |
Max output resolution : 1920×1080@60Hz |
|
Matrix Switching Capability |
|
Matrix Switch |
Video Source |
BNC/VGA/HDMI/DVI |
|
Non-compressed HD Video Matrix Switching |
24ch input, 16ch switched output |
|
Non-compressed SD Video Matrix Switching |
24ch input, 16ch switched output |
|
Video-wall Merge Control |
|
Splicing |
Function |
Splice, Zoom, Overlay, Roam |
|
Video Source |
HD & SD, Digital & Analog in any combination |
|
Output Interface |
DVI-I |
|
Control Mode |
PC client-end, Network keyboard, iPad |
|
Working Environment & other Physical Parameter |
|
Power Supply |
AC Power : 100~120V AC, 200~240V AC |
|
Power Consumption |
≤300W |
|
Working Temperature |
0℃~＋50℃ |
|
Working Humidity |
10%－90% 86kpa－106kpa |
|
Dimension（mm） |
6U standard 19”, 482.6(width)×314.5(depth)×266.7(height) |
|
Weight |
≤30Kg (full configuration) |  |
