Features
>19" standard 12U
>Easy and flexible configuration with pluggable card module design
>Function card supports hot-swap
>DC/AC Power supply
>320ch@D1 or 160ch@1080P signal encoding (full configured)
>1280ch@D1 or 320ch@1080P signal decoding (full configured)

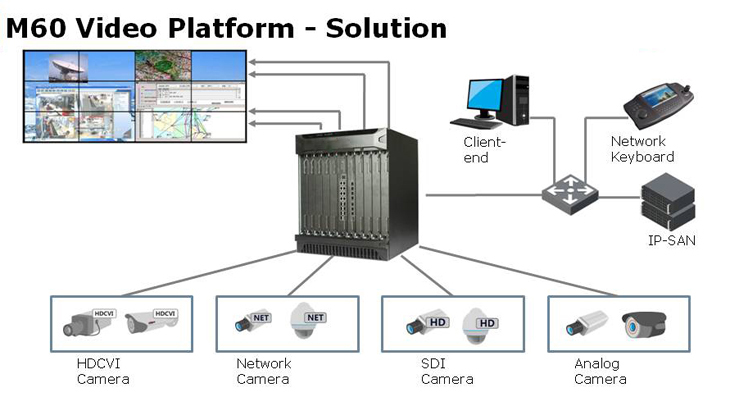

>Support analog/digital video signals input and matrix output
>Support SD/HD video signal matrix switch and output
>Support non-compressed digital signal encoding output
>Support switch via network keyboard, client-end and etc.
>8 RJ-45 ports and 8 optical ports (can’t be used simultaneously) for matrix control, preview and online central storage.
>Support TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE and etc. network protocols
>Support network extended alarm signal input and output
>Remote cast analog/digital video onto the video-wall
>Remote reboot/upgrade/default setting and etc operations
>Support functions as filter, whitelist and etc.
Technical Specifications
|
Model |
M60 |
|
System |
|
Main Processor |
Matrix Platform Quad-core embedded microprocessor |
|
Operating System |
Embedded LINUX |
|
Bus |
PCI-E |
|
Slot |
11 |
|
Mainframe |
2 Power Supply, main control board, PCI-E bus rear panel, smart temperature controlled fan |
|
Video Input Card |
Max. 10 |
|
Video Output Card |
Max. 10 |
|
Alarm Card |
Optional |
|
Video Input |
|
DH-VEC3204FB-M60 (Analog) |
Interface |
BNC (1.0VP-P, 75Ω) |
|
Encoding |
Single Function Card: 32ch@D1 |
|
Audio |
Single Function Card: 32ch, DB26(2.0Vp-p,1KΩ), G.711a |
|
RS485 |
2 Ports |
|
DH-VEC0804HS-M60 (HD-SDI) |
Interface |
BNC (1.0VP-P, 75Ω) |
|
Encoding |
Single Function Card: 8ch@1080p |
|
Audio |
Single Function Card: 8ch, DB26(2.0Vp-p,1KΩ), G.711a |
|
RS485 |
2 Ports |
|
DH-VEC1604HS-M60 (HD-SDI) |
Interface |
BNC (1.0VP-P, 75Ω) |
|
Encoding |
Single Function Card: 16ch@1080p |
|
Audio |
Single Function Card: 16ch, DB26(2.0Vp-p,1KΩ), G.711a |
|
RS485 |
2 Ports |
|
DH-VEC0804HD-M60 (DVI-I) |
Interface |
DVI-I |
|
Encoding |
Single Function Card: 8ch@1080p |
|
Audio |
Single Function Card: 8ch, DB26(2.0Vp-p,1KΩ), G.711a |
|
RS485 |
2 Ports |
|
DH-VEC1604HC-M60 (HDCVI) |
Interface |
BNC (1.0VP-P, 75Ω) |
|
Encoding |
Single Function Card: 16ch@1080p |
|
Audio |
Single Function Card: 16ch, DB26(2.0Vp-p,1KΩ), G.711a |
|
RS485 |
2 Ports |
|
Video Output |
|
DH-VDC1204B-M60 (BNC) |
Interface |
12ch BNC |
|
Decoding |
Single Function Card: 48ch@D1 |
|
Split |
1/4 |
|
Audio |
12ch, DB15 Line out |
|
RS485 |
2 Ports |
|
DH-VDC0804V-M60 (VGA) |
Interface |
8ch VGA |
|
Decoding |
Single Function Card:
32ch@1080p/64ch@720p/128ch@D1 |
|
Split |
1/4/9/16 |
|
Audio |
8ch, DB15 Line out |
|
RS485 |
2 Ports |
|
DH-VDC0804D-M60 (DVI) |
Interface |
8ch DVI |
|
Decoding |
Single Function Card: 32ch@1080p/64ch@720p/128ch@D1 |
|
Split |
1/4/9/16 |
|
Audio |
8ch, DB15 Line out |
|
RS485 |
2 Ports |
|
DH-VDC0804H-M60 (HDMI) |
Interface |
8ch HDMI |
|
Decoding |
Single Function Card:
32ch@1080p/64ch@720p/128ch@D1 |
|
Split |
1/4/9/16 |
|
Audio |
8ch, DB15 Line out |
|
RS485 |
2 Ports |
|
Matrix Switch |
|
Video Input |
Analog Camera, Digital Camera, IPC, DVR, NVS, NVR and etc. |
|
IP HD Matrix Switch |
320ch@1080p, 640ch@720p, 1280p@D1 |
|
Non-compressed HD Video Switch |
For example, 96/32ch in/out (6 16-ch HD-SDI input card & 8 8-ch HD output card) |
|
Non-compressed SD Video Switch |
For example, 256/24ch input/output (8 32-ch CVBS input card & 2 12-ch output card) |
|
Video-Wall |
|
Decoding Card Video-Wall Splicing |
Splicing |
Support video-wall splicing (max 80 LCD display units) |
|
Video-Wall |
Support Splicing Zoom/Merge/Roam/Overlay |
|
Input Source |
HD/SD, Digital/Analog (support mix input) |
|
Output Port |
HDMI/DVI/VGA/BNC |
|
Control Mode |
Local Operate Menu / PC client-end / Network Keyboard |
|
Network |
|
Interface |
8 RJ-45 ports (10/100/1000M)
8 optical ports
(The above two sorted ports can’t be used simultaneously) |
|
Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server |
|
Remote Operation |
Monitor, PTZ control, Playback, System setting, File download, Log information |
|
Auxiliary Interface |
|
USB Interface |
4 ports |
|
RS232/ RS485 |
Dahua keyboard, PC communication/ PTZ control |
|
Environmental |
|
Power Supply |
DC48V, 47-63Hz
AC 100~120V / 200~240V |
|
Power Consumption |
800W |
|
Working Environment |
0°C ~+50°C / 10~90%RH / 86~106kpa |
|
Dimension |
12U, 482.6mm×496mm×532.6mm(W×D×H) |
|
Weight |
≤40Kg |  |
