Features
>Being equipped with advanced built-in system and software, suit for villa
>Camera: 1 megapixel camera
>Temper glass panel for water-proof (IP65)
>Night vision: the particular white light in the camera able to make the clear picture at night
>One button with background light ,easy to operate
>Call indoor monitor and management centre
>Open with IC card
>Support unlock remotely
>Support customized call period function
>Support group call function
>Built-in access control extension module
Specifications
|
Mode |
VTO6110B |
|
System |
Main Processor |
Embedded micro processor |
|
Operation
System |
Embedded LINUX OS |
|
Video |
Video Compression Standard |
H.264 |
|
Input/Approaching Induction |
1 MP CMOS HD camera |
|
Black Light |
Support |
|
Audio |
Audio Input |
All-direction Microphone |
|
Audio Output |
Built-in speaker |
|
Bidirectional Talk |
Support dual-way bidirectional talk |
|
Operation Mode |
Input |
Digital keyboard |
|
Card |
Built-in IC card induction reader |
|
Alarm and Access Control |
Vandal proof |
Support |
|
Access control |
Support |
|
Network |
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP,SNMP,MDI/MDI-X Self-adaptive |
|
Storage |
Memory |
128MB |
|
Others |
Power |
DC 10~15V |
|
Power Consumption |
Standby ≤1W，work ≤5W |
|
Working Environments |
-10℃－＋55℃ |
|
Water Proof |
IP65 |
|

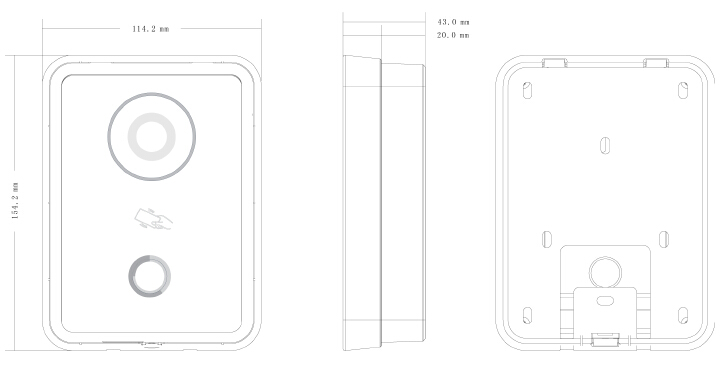

Dimensions |
154.2mm*114.2mm*43.0mm（L*W*T）; |
|
Weight |
0.6Kg |  |
