Features

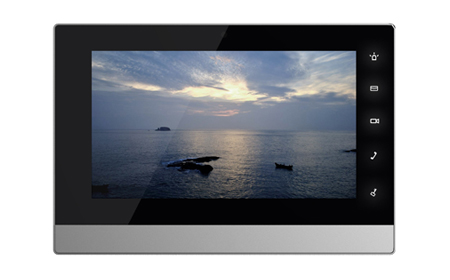

>Displayer: Color 7-inch TFT LCD, resistance touch screen resolution 800×480
>Support 8 wire alarm input extension or home appliance
>Call among households
>1 channel 10/100Mbps self-adaptive Ethernet
>Support outdoor station and IPC monitor
>Support leave audio and video message
>Support POE power supply
>Surface mounted & Flush mounted
Specifications
|
Model |
VTH1510CH |
|
System |
Main Processor |
Built-in microcontroller |
|
Operation System |
Embedded LINUX operating system |
|
Video |
compression |
H.264 |
|
Resolution |
800*480 |
|
Audio |
Audio Input |
All-direction microphone |
|
Audio Output |
Embedded loudspeaker |
|
Bidirectional Talk |
Support bidirectional talk |
|
Display |
Size |
Color 7-inch TFT LCD |
|
Operating modes |
input |
Mechanical keys(emergency, protection, video talk, monitoring, unlock ), Touch screen technology |
|
Alarm |
Alarm input |
Support 8 channels input |
|
Alarm output |
Support 1 channel output |
|
Network |
Ethernet |
10 M / 100 Mbps adaptive |
|
network protocol |
TCP/IP |
|
General |
Power |
DC 10~15V or supply directly by Special switching power |
|
Power Consumption |
Standby ≤1.5W，work≤7W |
|
work environment |
Temperature: -10℃~+60℃ |
|
Humidity: 10~90%RH |
|
Dimensions |
200mm×126mm×22mm（L*W*T）; |
|
Weight |
0.8Kg |  |
