Features
> Displayer: 7“ TFT LCD, resistive touch screen resolution, resolution 800×480
> 5 mechanical button
> 1 channel 10/100Mbps self-adaptive Ethernet

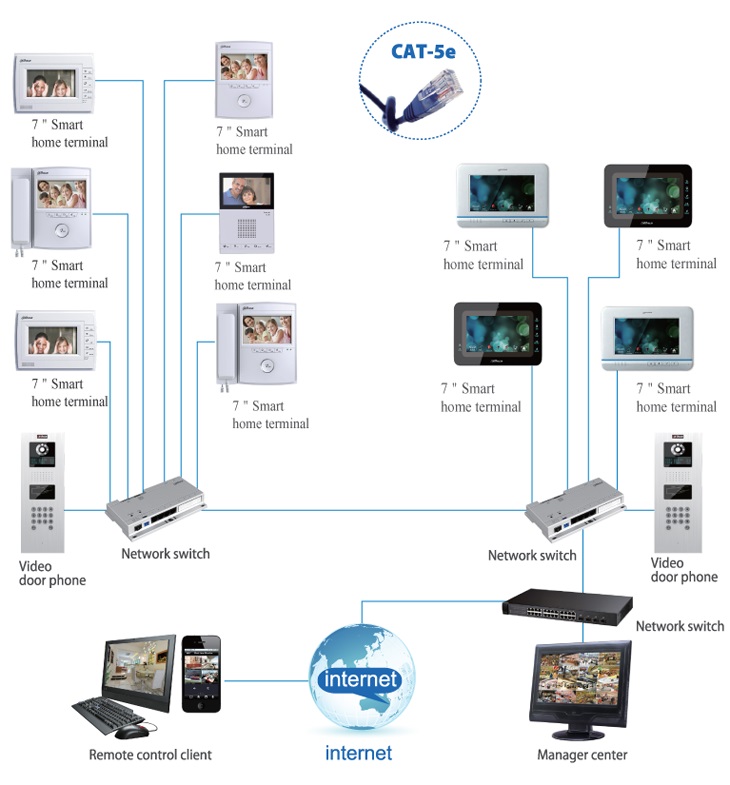

> To communicate with other residents in the same community
> Info publish, leave message, emergency calling
> Support DND setting and multiple outdoor station connection
> Support outdoor station and IPC monitor
> Support POE power supply
> Support SD card storage, video record and picture snapshot
Specifications
|
Model |
VTH1520AH |
|
System |
Main Processor |
Built-in microcontroller |
|
Operation System |
Embedded LINUX operating system |
|
Video |
compression |
H.264 |
|
Resolution |
800*480 |
|
Audio |
Audio Input |
All-direction microphone |
|
Audio Output |
Embedded loudspeaker |
|
Bidirectional Talk |
Support bidirectional talk |
|
Display |
Size |
Color 7-inch TFT LCD |
|
Operating modes |
input |
Mechanical keys(emergency, protection, video talk, monitoring,unlock ), Touch screen technology |
|
Alarm |
Alarm input |
Support 8 channels input |
|
Network |
Ethernet |
10 M / 100 Mbps adaptive |
|
network protocol |
TCP/IP |
|
General |
Power |
DC 10~15V or supply directly by Special switching power |
|
Power Consumption |
Standby ≤1.5W, work≤7W |
|
work environment |
Temperature: -10℃~+60℃ |
|
Humidity: 10~90% RH |
|
Dimensions |
261.0mm*192.0mm*24.1mm (L*W*T); |
|
Weight |
1.0Kg |  |
