Products  >> OTHERS >> Video Intercom


VTH1500A-S
7-inch Color Indoor Monitor


Features
>7” TFT LCD screen, with outstanding effect.
> Easy to use with big buttons
>Color Video phone, support hand-free calls.
>Support monitoring, video talk, unlock function
>Support Information check, can receive Message from guard office
>Directly notice to guard office for emergency
>Compatible to up to 6 security sensors (Burglar, fire, gas leakage ,etc)

Specifications
Model
VTH1500A-S
System
Main Processor
NEC MCU
Operation Interface
Simple OSD message
Input Device
Mechanical keys, 5
Video
Video Input
1-ch CVBS analog video
Video Display
7” color LCD, resolution: 800x480
Monitoring
Support monitoring with monitor button
Audio
Audio Input
1-ch microphone input (Omni-directional electrets)
Audio Output
1-ch loudspeaker output
Bidirectional Talk
1-ch bidirectional talk, two way
Alarm
Alarm input
Support 6 channels input
Alarm output
Support 1 channel output
Network Function
Net Control
Monitor & Unlock
Call management center for emergency
RS485 bus
Remotely upgrade
Interface
Net Interface
RJ45(non-Ethernet)plug connected with distributor, including power supply, AV and control signal
RS485
Bus control and software upgrading
DC Power
24V
System Upgrading
Remote network upgrading
General
Power
24V / 0.3A
Power Consumption
max 6W
Temperature
-5℃-+55℃
Humidity
20%-90%

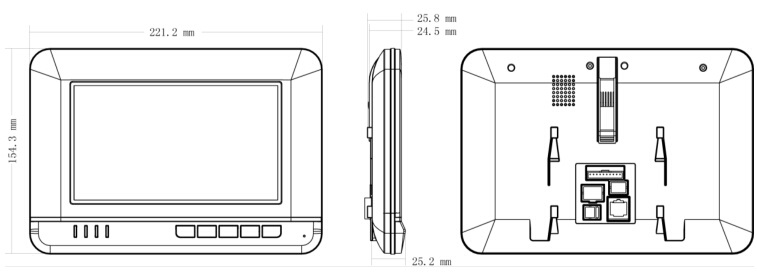

Dimensions
221.2mm*154.3mm*25.8mm(L*W*T)
Weight
0.75 Kg
Installation Method
Surface mounted & Flush mounted
